| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,619 pcs
|
1619 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
52 pcs
|
52 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Current | |
| Current Consumption (TX) | |
| Current Consumption Rx (Typical) | |
| Current Consumption Sleep | |
| Data Rate | |
| Data Rate (@ FSK) | |
| Data Rate (OOK) | |
| Frequency | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature (Minimum/Maximum) | |
| Operating Voltage (Minimum/Typical/Maximum) | |
| Output Power | |
| Power | |
| RF Family | |
| Reception Sensitivity (OOK) | |
| Sensitivity | |
| Serial Interfaces | |
| Tape & Reel | |
| Tx Power Control Range | |
| Utilized IC | |
| Voltage |

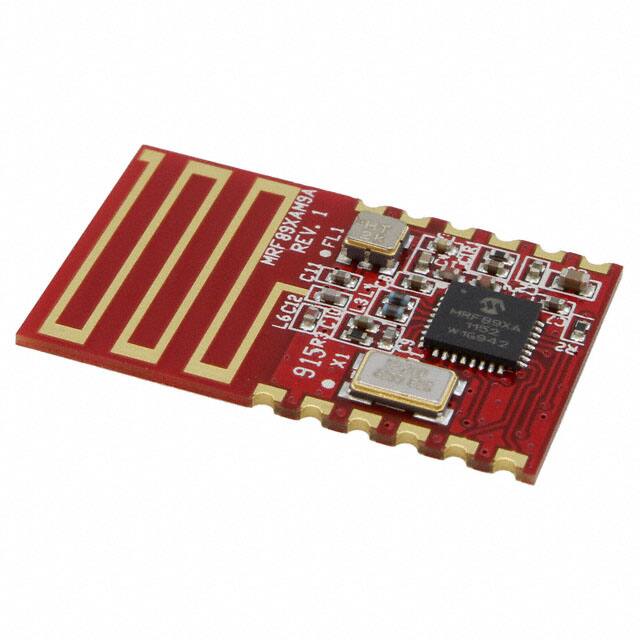

The MRF89XAM9A-I/RM is a module designed from the MRF89XA Integrated Ultra Low-Power, Sub-GHz Transceiver IC by Microchip Technology. It supports proprietary wireless networking protocols and the MiWi™ Development Environment.
This module operates in the 902–928 MHz ISM band, supporting FSK and OOK modulation. For FSK, the data rate is up to 200 kbps, and for OOK, it is 28 kbps. Reception sensitivity is -105 dBm (typical) for FSK at 25 kbps and -111 dBm (typical) for OOK at 2 kbps. The typical output power is +10 dBm with a 21 dB Tx power control range.
Key features include a 4-wire Serial Peripheral Interface (SPI) with interrupts, an integrated crystal, internal voltage regulator, matching circuitry, and a PCB antenna. It is compatible with Microchip's PIC microcontroller families. The module has modular device approval for the United States (FCC), Canada (IC), and is radio regulation certified for Australia/New Zealand (C-TICK).
Designed for easy integration, it minimizes product development time. The module is surface mountable and pin compatible with the MRF89XAM8A. It operates from a 2.1V to 3.6V supply, with a typical current consumption of 3 mA in Rx mode, 25 mA in Tx mode at +10 dBm, and 0.1 µA in sleep mode. The operating temperature range is -40°C to +85°C industrial.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.06 | $6.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.1V to 3.6V, with a typical value of 3.3V.
The operating temperature range is -40°C to +85°C.
The RoHS status is RoHS3 Compliant.
The data rate for FSK modulation is 200 kbps.
The reception sensitivity for OOK modulation is -111 dBm at 2 kbps.
