| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,500 pcs
|
6500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,555 pcs
|
1555 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Efficiency | |
| Gain | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Supplier Device Package | |
| Transistor Type | |
| Voltage |

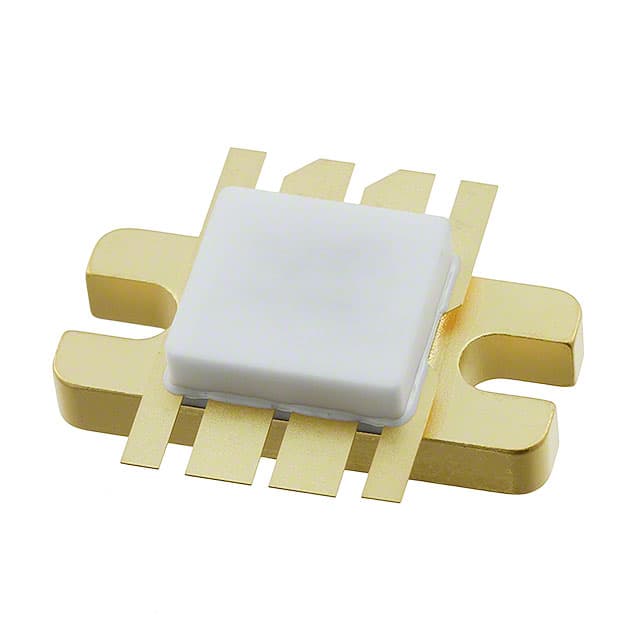

The MACOM MRF392 is a broadband power transistor designed for wideband large-signal output and driver amplifier stages within the 30 to 500 MHz frequency range. This device is specified for 28V operation, delivering 125W of output power with a typical gain of 10 dB and 55% efficiency at 400 MHz.
Key design features include built-in input impedance matching networks for broadband operation and a push-pull configuration that helps reduce even-numbered harmonics. The transistor utilizes a gold metallization system for high reliability and is 100% tested for load mismatch. It is housed in a 744A-01 package suitable for chassis mounting.
The MRF392 contains two NPN transistors in a single package with common emitters, enabling space-saving push-pull configurations. It operates at a voltage of 30V and can handle currents up to 16A, with a maximum operating temperature of 200°C (TJ).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MRF392 transistor has an output power of 125W.
The MRF392 is designed for the 30 to 500 MHz frequency range.
The typical gain of the MRF392 at 400 MHz is 10 dB.
The MRF392 operates at 30V.
The MRF392 is supplied in the 744A-01, Style 1 package.
The operating temperature for the MRF392 is 200°C (TJ).
