| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,407 pcs
|
1407 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
47 pcs
|
47 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Current Rating (Amps) | |
| Frequency | |
| Gain | |
| Mounting Type | |
| Power | |
| Supplier Device Package | |
| Technology | |
| Voltage |
The NXP Semiconductors MRF300AN is a high-ruggedness, N-Channel, enhancement-mode, lateral MOSFET designed for RF power applications. It operates within a frequency range of 1.8 MHz to 250 MHz, delivering up to 300W of continuous power.
This LDMOS transistor is suitable for linear applications and features integrated ESD protection. It is characterized from 30 to 50V and is designed for use in HF and VHF communications, industrial, scientific, and medical (ISM) applications, and broadcast and aerospace sectors.

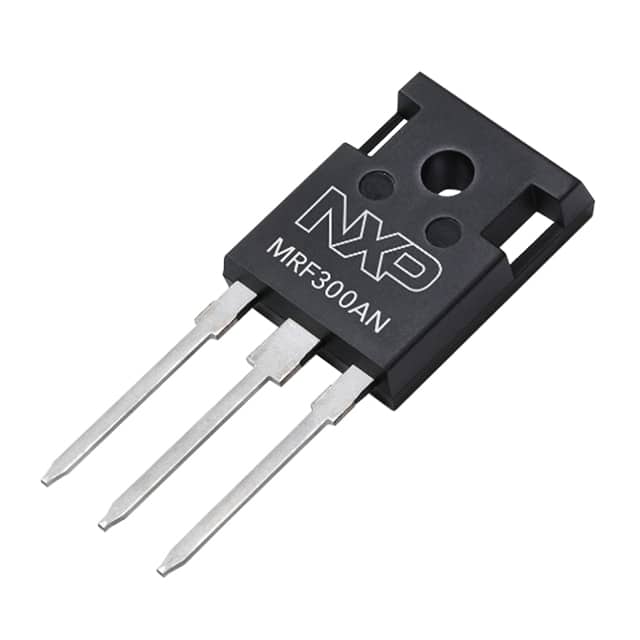

The MRF300AN comes in a TO-247-3 package and is mounted via a through-hole method. Its typical performance includes a gain of 28.2dB and a drain efficiency of 79.7% at 13.56 MHz.
NXP includes this part in its product longevity program, ensuring a minimum supply of 15 years after launch. Typical applications include laser generation, plasma etching, particle accelerators, MRI, industrial heating, welding, drying systems, radio and VHF TV broadcast, and HF/VHF communications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MRF300AN has a maximum operating voltage of 50 Vdc.
The typical power output (Pout) for the MRF300AN at 13.56 MHz CW is 320 W.
The MRF300AN operates across a frequency range of 1.8 MHz to 250 MHz.
The MRF300AN is supplied in a TO-247-3 package.
The RoHS status for the MRF300AN is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the MRF300AN is 1 Unlimited.
