| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,349 pcs
|
9349 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Current | |
| Current Consumption (Hibernate) | |
| Current Consumption (TX) | |
| Current Consumption Sleep | |
| Data Rate | |
| Frequency | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage |

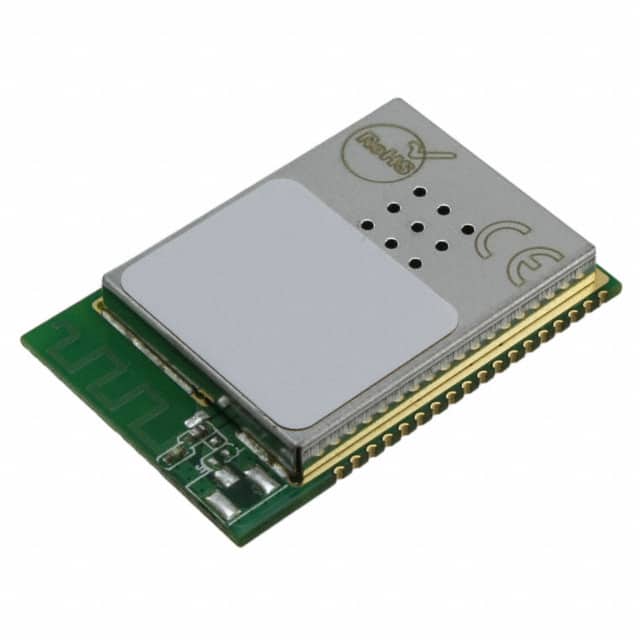

The Microchip MRF24WB0MA/RM is an IEEE 802.11-compliant RF transceiver module designed for easy integration into final products. It operates in the 2.4GHz ISM band and supports data rates of 1 and 2 Mbps, compatible with IEEE 802.11b/g/n networks.
Key electrical specifications include a typical sensitivity of -91 dBm at 1 Mbps and a typical output power of +10 dBm. The module operates from a single voltage supply of 2.7V to 3.6V (3.3V typical) and features low current consumption in various modes, including RX (85 mA typical) and TX (154 mA typical).
This module utilizes DSSS modulation and a simple four-wire SPI interface for communication. It has an integrated PCB trace antenna and is designed for surface mount applications. The operating temperature range is -40°C to +85°C.
Applications for this module include utility and smart energy systems, consumer electronics, industrial controls, and remote device management.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.06 | $6.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 2.7V to 3.6V, with a typical value of 3.3V.
The operating temperature range is -40°C to +85°C.
The data rate is up to 2 Mbps.
The typical sensitivity at 1 Mbps is -91 dBm.
It features an integrated trace antenna.
