| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Current Rating (Amps) | |
| Efficiency | |
| Frequency | |
| Gain | |
| Power | |
| Supplier Device Package | |
| Technology | |
| Voltage |

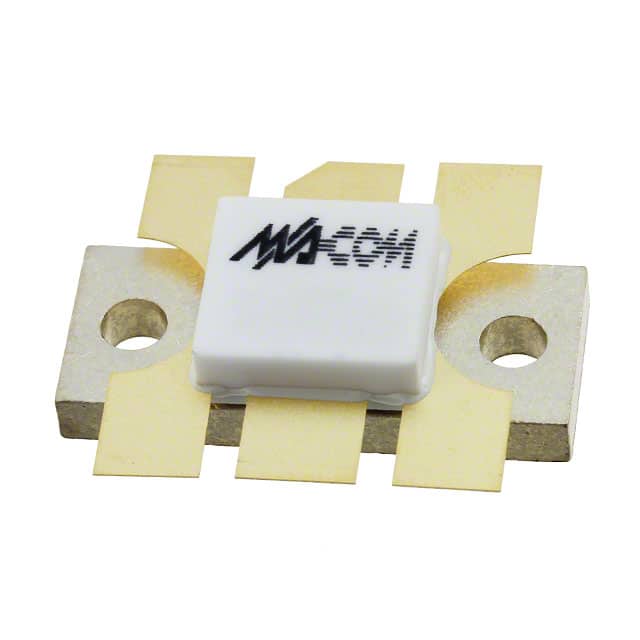

The MRF175LU from MACOM Technology Solutions is a high-performance N-Channel enhancement mode RF MOSFET. Designed for broadband commercial and military applications, it operates at frequencies up to 400 MHz.
This device delivers a nominal output power of 100W with a typical power gain of 10dB and an efficiency of 55% at 28V. It is 100% ruggedness tested at rated output power. Key electrical characteristics include a typical gate-drain capacitance of 20 pF at 28V.
The MRF175LU is suitable for solid-state transmitters in FM broadcast or TV channel frequency bands. It features low thermal resistance and is supplied in the 333-04 package style.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MRF175LU provides 100W of output power at 28V and 400MHz.
The typical power gain for the MRF175LU is 10dB at 400MHz.
The MRF175LU operates at frequencies up to 400MHz.
The MRF175LU is supplied in the 333-04 package.
