The MACOM Technology Solutions MRF166C is an N-Channel enhancement mode RF MOSFET designed for wideband large-signal output and driver applications from 30-500MHz. It is guaranteed for performance at 500 MHz and 28 Vdc, delivering an output power of 20 W with a gain of 13.5 dB and 50% efficiency.
This device is suitable for Class A operation due to its excellent thermal stability and low Crss of 4.0 pF at VDS = 28 V. It is 100% tested for load mismatch at all phase angles with a 30:1 VSWR, facilitating manual gain control, ALC, and modulation techniques. The MRF166C is a replacement for industry standards such as MRF136, V2820, BLF244, SD1902, and ST1001.

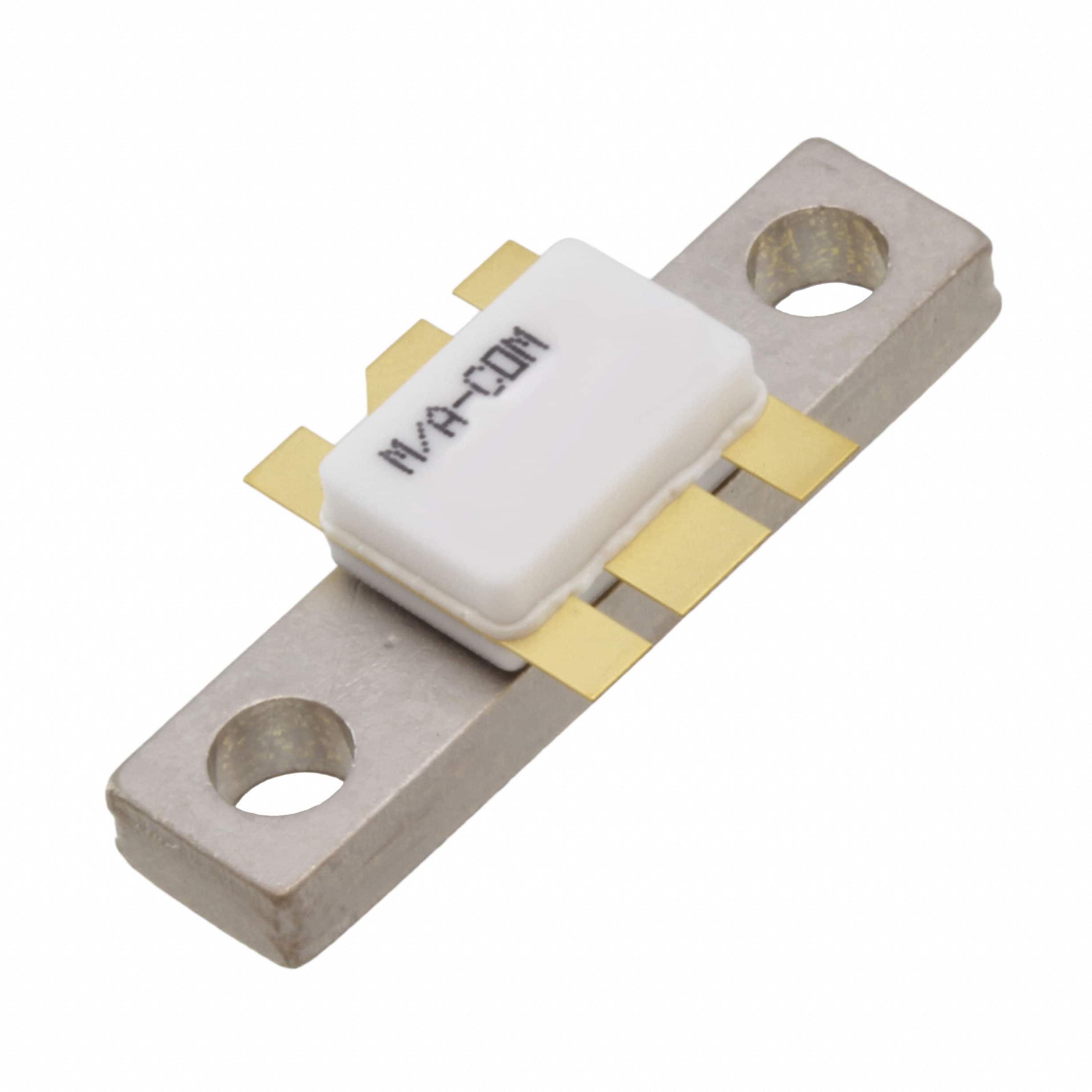

The MRF166C is housed in a 319-07 package with screw mounting. It operates within a temperature range of -65°C to 200°C and has a maximum power dissipation of 70W. The component is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MRF166C provides 20 W of output power.
The MRF166C is designed for operation from 30MHz to 500MHz.
The gain of the MRF166C is 16 dB.
The drain-source voltage rating for the MRF166C is 65V.
The MRF166C operates from -65°C to 200°C.
The MRF166C is RoHS3 compliant.
The Moisture Sensitivity Level for the MRF166C is 1 Unlimited.
