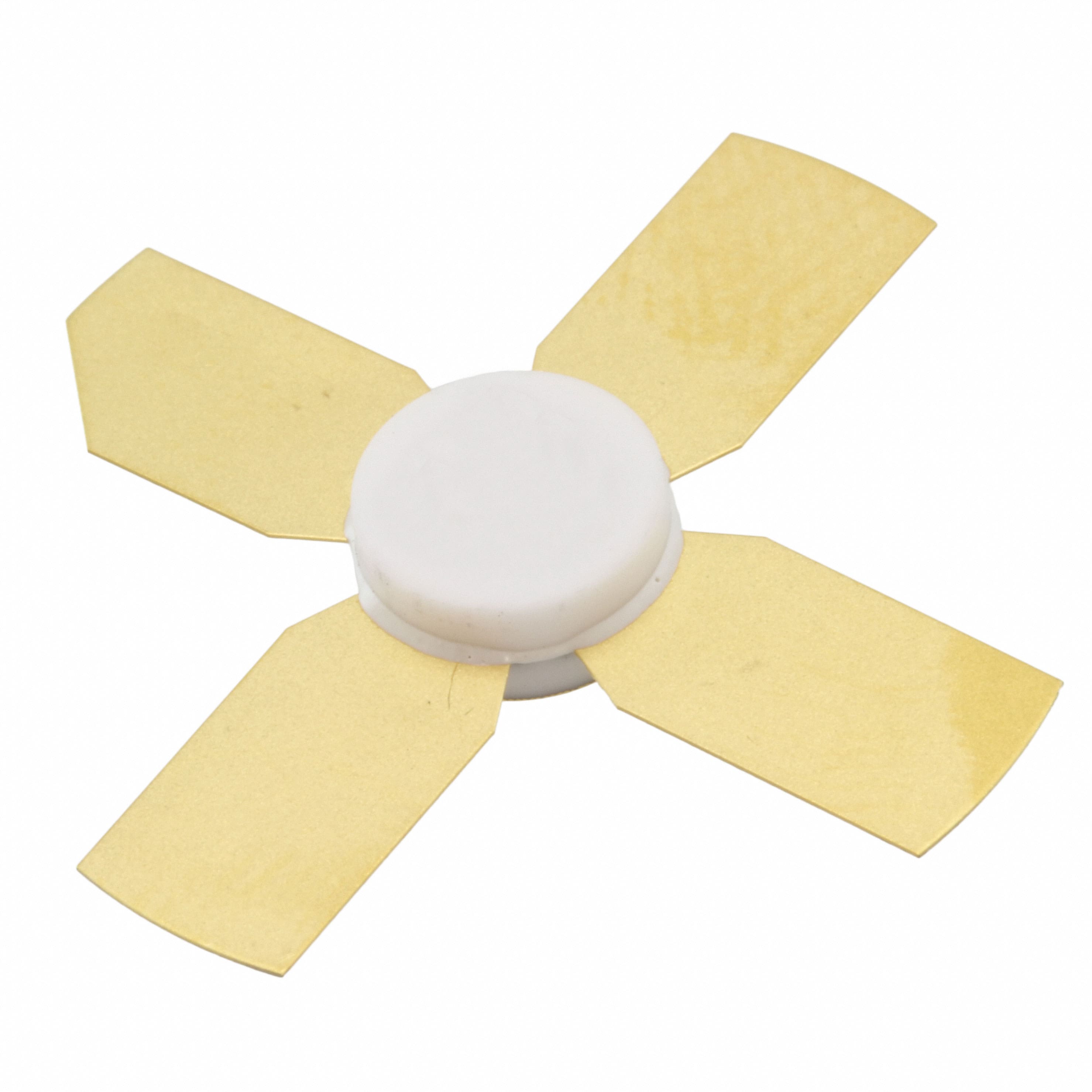

MRF160 The MACOM Technology Solutions MRF160 is an N-Channel RF Power MOSFET designed for wideband large-signal output and driver applications from 30-500 MHz. It offers 4W output power and 16dB minimum gain.
Mfr Part #:

MRF160

Available from 2 distributors
Mfr Name: MACOM Technology Solutions
MACOM Technology Solutions
The MACOM Technology Solutions MRF160 is an N-Channel RF Power MOSFET designed for wideband large-signal output and driver applications from 30-500 MHz. It offers 4W output power and 16dB minimum gain.
✓ Total Stock: 6,412 pcs
$ Price Range: $0.99

MRF160 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,358 pcs
On Request
6358 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
54 pcs
On Request
54 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MRF160 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Configuration
Current
Current Rating (Amps)
Efficiency
Frequency
Gain
Industrial Grade
Medical Grade
Military Grade
Power
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Voltage
View Similar Products (0)

MRF160 Description

Short technical summary and product information.

The MACOM Technology Solutions MRF160 is an N-Channel enhancement mode RF Power MOSFET. It is designed for wideband large-signal output and driver applications, operating effectively in the frequency range of 30 MHz to 500 MHz.



This device guarantees performance at 28V and 500 MHz, delivering an output power of 4.0 W with a minimum gain of 16 dB and a typical efficiency of 55%. Its excellent thermal stability makes it ideally suited for Class A operation. The MRF160 facilitates manual gain control, ALC, and modulation techniques.



Key electrical characteristics include a typical Crss of 0.8 pF at VDS = 28 V. The component is 100% tested for load mismatch at all phase angles with a 30:1 VSWR. It is housed in a 249-06 package.



This RF MOSFET is suitable for various RF power amplification applications where reliable performance and thermal management are critical.

MRF160 Quick Information

Product Type: RF Power MOSFET
Canonical Name: MRF160 N-Channel RF Power MOSFET
Subcategory: RF Power MOSFET

MRF160 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MRF160 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

MRF160 Features

  • Wideband operation from 30 to 500 MHz.
  • Guaranteed 28V, 500MHz performance.
  • 4.0W output power.
  • 16dB minimum gain.
  • 55% typical efficiency.

MRF160 Applications

  • Wideband RF power amplification.
  • Large-signal output stages.
  • RF driver applications.
  • Class A operation circuits.

MRF160 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating frequency range for the MRF160?

The MRF160 operates from 30 MHz to 500 MHz.

What is the guaranteed operating voltage for the MRF160?

The MRF160 is guaranteed for 28V operation.

What is the output power of the MRF160?

The MRF160 provides 4.0W of output power.

What is the minimum gain of the MRF160?

The MRF160 has a minimum gain of 16 dB.

What is the typical efficiency of the MRF160?

The MRF160 has a typical efficiency of 55%.

What is the typical Crss for the MRF160?

The typical Crss for the MRF160 is 0.8 pF at VDS = 28 V.

What is the package type for the MRF160?

The MRF160 is supplied in the 249-06 package.
