| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,524 pcs
|
2524 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,006 pcs
|
2006 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,160 pcs
|
1160 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Configuration | |
| Current | |
| Current Rating (Amps) | |
| Efficiency | |
| Frequency | |
| Gain | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Power | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Thermal Resistance | |
| Voltage |

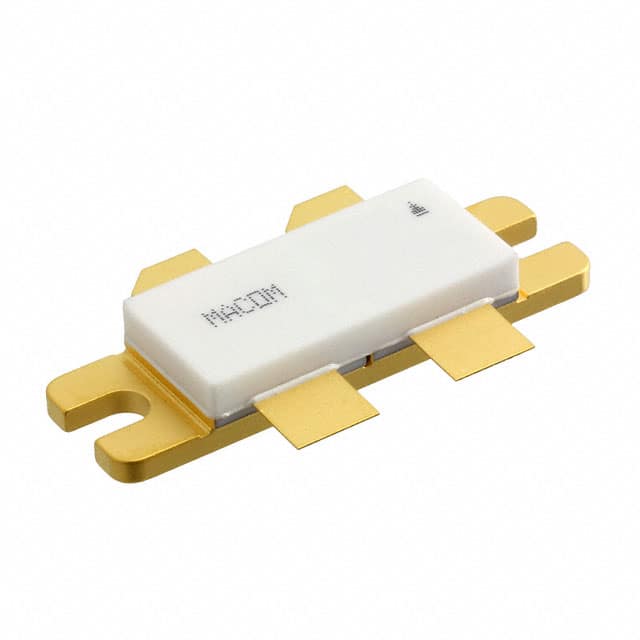

The MACOM Technology Solutions MRF151G is an N-Channel RF Power Field-Effect Transistor designed for broadband commercial and military applications operating at frequencies up to 175 MHz. This device is engineered to provide high power, high gain, and broadband performance, making it suitable for solid-state transmitters in FM broadcast or TV channel frequency bands.
Key features include a guaranteed output power of 300 W and a typical gain of 16 dB at 175 MHz and 50 V. The MOSFET also boasts an efficiency of 50% and a low thermal resistance of 0.35°C/W. It has undergone ruggedness testing at rated output power and features a nitride-passivated die for enhanced reliability.
The MRF151G is housed in a 375-04 package. Its electrical characteristics include a continuous current rating of 500 mA and a peak current rating of 40A, with a voltage rating of 50 V.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MRF151G has a guaranteed output power of 300 W at 175 MHz and 50 V.
The MRF151G offers a typical gain of 16 dB at 175 MHz and 50 V.
The operating voltage for the MRF151G is 50 V.
This RF MOSFET is designed for frequencies up to 175 MHz.
The package type for the MRF151G is 375-04.
