| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,600 pcs
|
3600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Current Rating (Amps) | |
| Efficiency | |
| Frequency | |
| Gain | |
| Lead Style | |
| Power | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

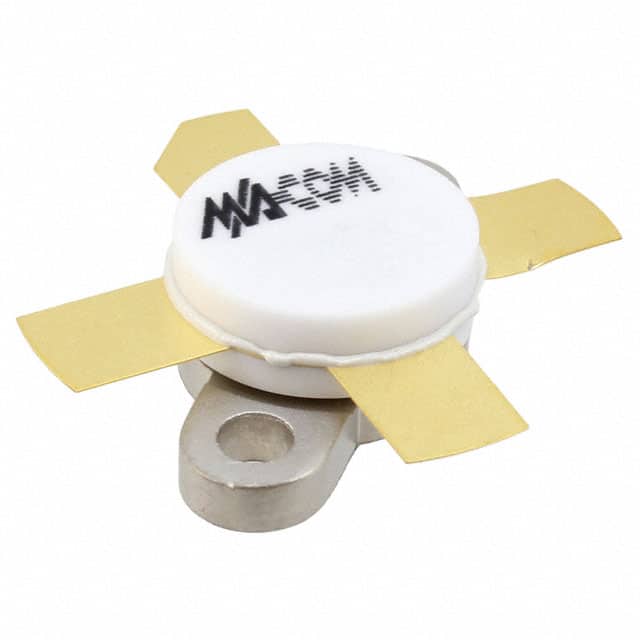

The MRF150 from MACOM Technology Solutions is a high-performance RF Power FET specifically designed for linear large-signal output stages operating up to 150 MHz. This device is capable of delivering a substantial 150 Watts of output power with a typical power gain of 17 dB at 30 MHz and 50V.
Key electrical characteristics include superior high-order intermodulation distortion (IMD), with typical values of -32dB for IMD(d3) and -60dB for IMD(d11) at 150W PEP. The typical efficiency is rated at 45% at 30 MHz. The component is specified for 50V operation and is 100% tested for load mismatch at all phase angles, ensuring reliability in demanding applications.
The MRF150 is housed in a 211-11, Style 2 package, suitable for various mounting configurations. Its robust design and performance metrics make it suitable for applications requiring high power RF amplification within its specified frequency range.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MRF150 provides 150 Watts of output power.
The typical power gain for the MRF150 is 17dB.
The MRF150 is specified for 50V operation.
The MRF150 operates in the frequency range of 30MHz to 150MHz.
The MRF150 is supplied in a 211-11, Style 2 package.
