| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Current Rating (Amps) | |
| Efficiency | |
| Frequency | |
| Gain | |
| Noise Figure | |
| Power | |
| Supplier Device Package | |
| Technology | |
| Voltage |

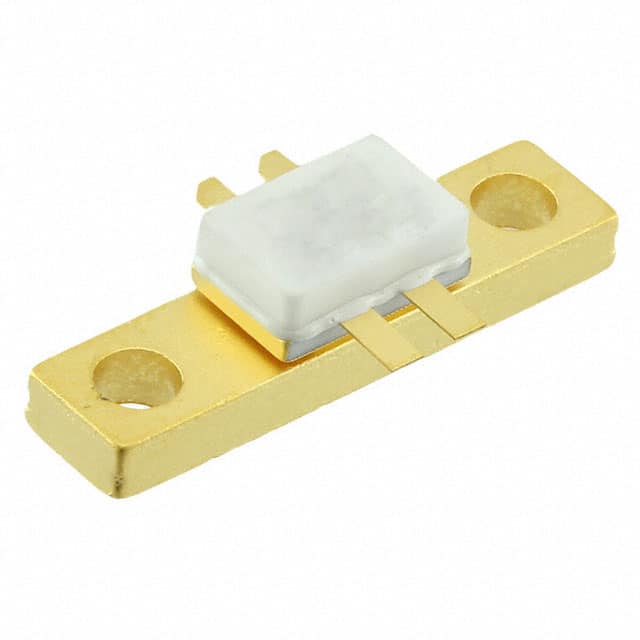

The MACOM Technology Solutions MRF136Y is an N-Channel enhancement mode RF MOSFET designed for wideband large signal amplifier and oscillator applications. It operates up to 400 MHz and is suitable for single-ended or push-pull configurations.
Key electrical specifications include a guaranteed 28 volt, 150 MHz performance with 30 Watts of output power and a typical broadband gain of 14 dB. The device also features a typical efficiency of 54% and a noise figure of 1dB. It is rated for 5A current and operates with a quiescent current of 25 mA.
The MRF136Y is 100% tested for load mismatch at all phase angles with a 30:1 VSWR. It is supplied in the 319B-02 package, which is space-saving for push-pull circuit applications. The MOSFET exhibits excellent thermal stability, making it well-suited for Class A operation and facilitating manual gain control, ALC, and modulation techniques.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MRF136Y has an output power of 30 Watts.
The MRF136Y operates up to 400MHz.
The typical broadband gain for the MRF136Y is 14dB.
The MRF136Y is guaranteed for 28 volt performance.
The MRF136Y is supplied in the 319B-02 package.
