| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Ingress Protection | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

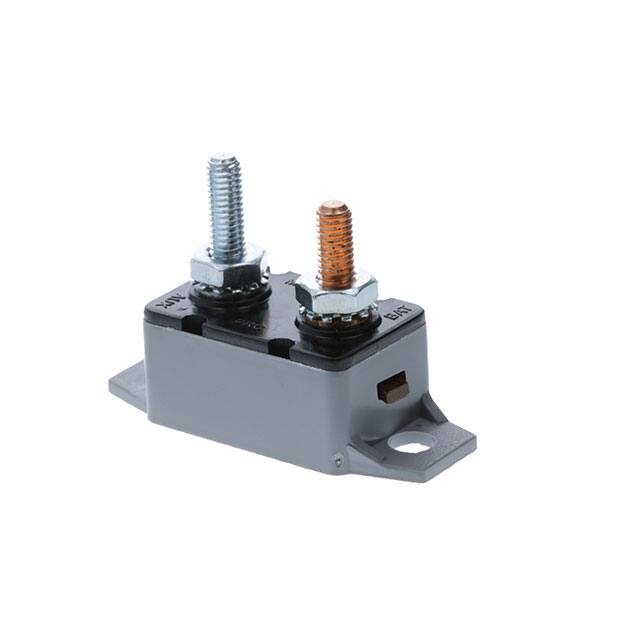

This OptiFuse MRCBP-V-35A circuit breaker is designed for reliable circuit protection in demanding applications. It operates manually with a push-to-reset actuator and is rated for 35 Amps and a voltage of up to 32VDC.
The breaker features a durable thermoplastic (UL94V-0) body and is built to withstand harsh environments, offering SAE J1171 ignition protection and an IP63 ingress protection rating. It is designed for chassis mounting and utilizes 10-32 stud terminals for secure connections.
Key electrical and mechanical specifications include a 1-pole configuration, an interrupting rating of 4 times the rated current, and a wide operating temperature range from -10°C to 60°C. Mounting torque is specified at 3.0±0.3 N.m, and stud torque at 1.0±0.1 N.m.
This circuit breaker is suitable for various automotive and industrial applications where robust protection and environmental resistance are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The OptiFuse MRCBP-V-35A circuit breaker is rated for up to 32 VDC.
The current rating for the MRCBP-V-35A is 35A.
The OptiFuse MRCBP-V-35A is a manual reset circuit breaker, operated by pushing the actuator.
The operating temperature range for the MRCBP-V-35A is -10°C to 60°C.
Yes, the MRCBP-V-35A features SAE J1171 ignition protection.
The OptiFuse MRCBP-V-35A has an ingress protection rating of IP63.
The MRCBP-V-35A uses 10-32 stud terminals.
