MRCBP-H-10C
OptiFuse
The OptiFuse MRCBP-H-10C is a 10A, 32VDC circuit breaker with a manual push-to-reset actuator. It is designed for chassis mounting.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Ingress Protection | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Voltage Rating |

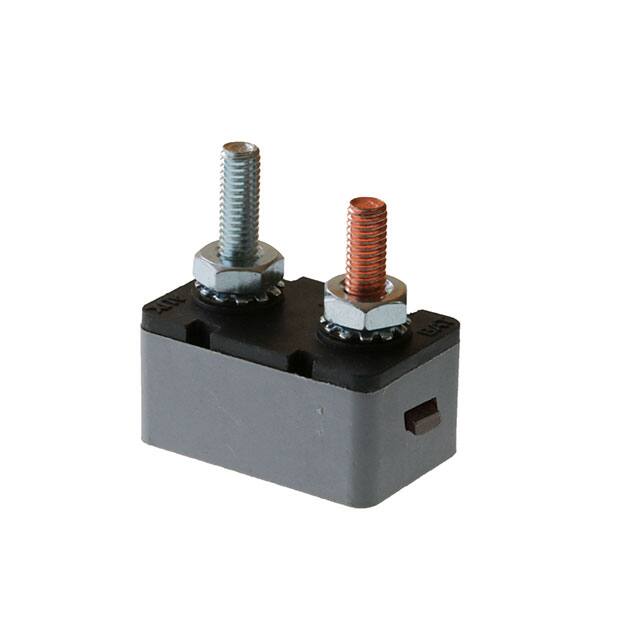

This OptiFuse MRCBP-N-10A circuit breaker is rated for 10 Amps and 32 VDC, featuring a convenient push-to-reset actuator. It is designed for chassis mounting and operates with a single pole.
The breaker meets SAE J553 testing standards and offers ignition protection according to SAE J1171, along with an IP63 ingress protection rating. Its operating temperature range is from -10°C to 60°C.
The body is constructed from UL94V-0 rated thermoplastic, with copper-plated battery terminals and zinc-plated auxiliary terminals. The studs have a torque rating of 3.0±0.3 N.m.
This manual reset circuit breaker is suitable for applications requiring reliable overcurrent protection in demanding environments.
The OptiFuse MRCBP-N-10A circuit breaker has a current rating of 10A.
The voltage rating for the MRCBP-N-10A is 32VDC.
The OptiFuse MRCBP-N-10A features a manual push-to-reset actuator.
The MRCBP-N-10A supports chassis mounting.
The operating temperature range for the MRCBP-N-10A is -10°C to 60°C.
Yes, the MRCBP-N-10A has SAE J1171 ignition protection.
The OptiFuse MRCBP-N-10A has an ingress protection rating of IP63.
