| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Automotive Grade | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Voltage Rating |

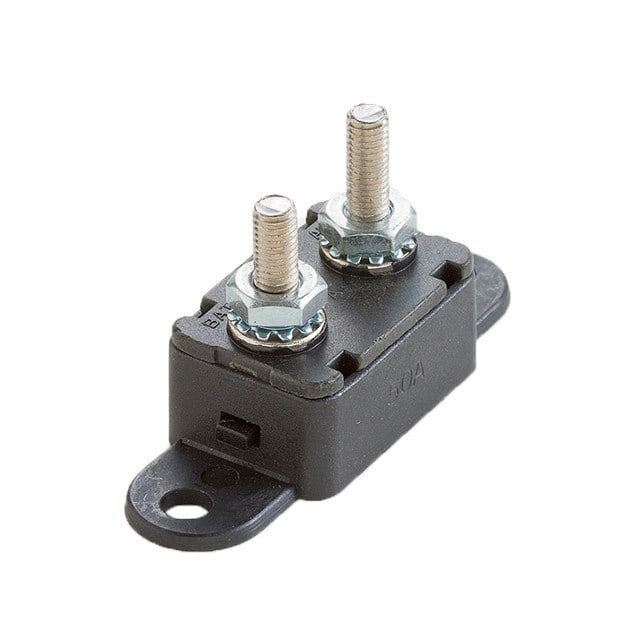

This OptiFuse MRCBP-24-V-50A is a manual reset circuit breaker with a robust PBT body, suitable for automotive applications. It is rated for 24VDC and provides a 50A current capacity, making it ideal for overcurrent protection in demanding environments.
The circuit breaker conforms to the American National Standard SAE J553, ensuring reliable performance and safety. It features copper plate battery terminals (0.58”) and zinc plate auxiliary terminals (0.66”). The operating temperature range is -10°F to 150°F, with a storage temperature range of -20°F to 200°F.
Designed for occasional overcurrent protection, this device is intended for applications where prolonged trip conditions are not anticipated. It is built with an Automotive Type III plastic housing and a vertical bracket for mounting.
Key specifications include a 24VDC voltage rating and a 50A current rating. The device also specifies open time characteristics at various current percentages: greater than 30 minutes at 100%, less than 30 minutes at 135%, and less than 1 minute at 200%.
The OptiFuse MRCBP-24-V-50A has a voltage rating of 24VDC.
This circuit breaker has a current rating of 50A.
The MRCBP-24-V-50A features a push-to-reset actuator.
The OptiFuse MRCBP-24-V-50A is a single-pole circuit breaker.
The operating temperature range is -10°F to 150°F.
Yes, it conforms to the American National Standard SAE J553.
It has copper plate battery terminals (0.58”) and zinc plate auxiliary terminals (0.66”).
