| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Terminal Type | |
| Type | |
| Voltage Rating |

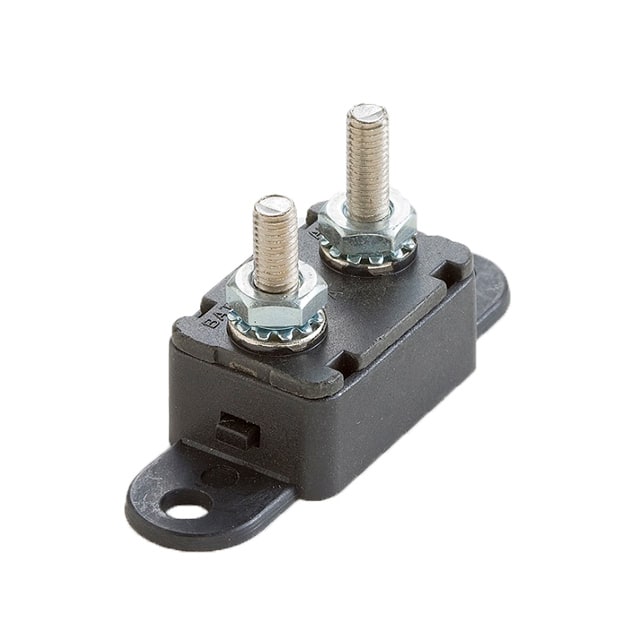

The OptiFuse MRCBP-24-V-35A is a manual reset circuit breaker designed for overcurrent protection in automotive applications, conforming to SAE J553 standards. It operates at a voltage rating of 24VDC and a current rating of 35A.
Constructed with a durable PBT body, this circuit breaker is suitable for a wide operating temperature range from -10°F to 150°F. The terminals include a Copper Plate battery terminal (0.58”) and a Zinc Plate auxiliary terminal (0.66”).
This device is intended for occasional overcurrent protection. Avoid operation beyond specified maximum ratings or improper use, which may result in damage. Prolonged contact with chemical solvents should also be avoided as it can damage the device's performance.
The voltage rating is 24 VDC.
The current rating is 35A.
The operating temperature range is -10°F to 150°F.
Yes, it conforms to American National Standard SAE J553.
It features a manual reset mechanism.
