| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Automotive Grade | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Terminal Type | |
| Voltage Rating |

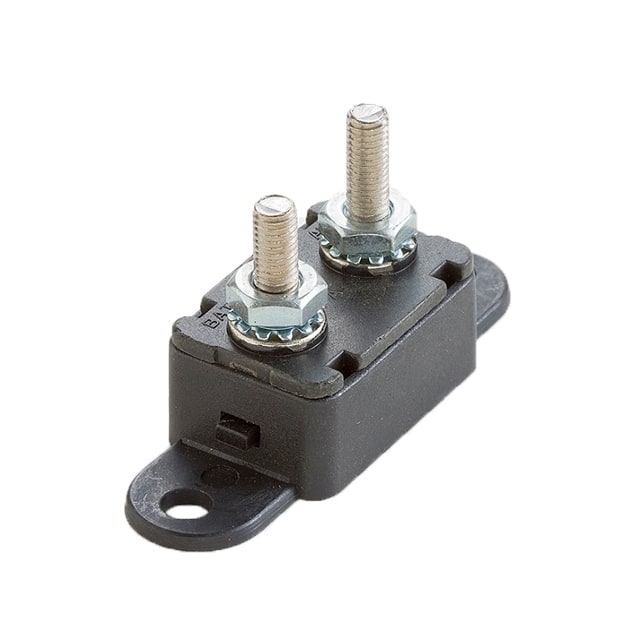

The OptiFuse MRCBP-24-V-30A is a Type III manual reset circuit breaker rated for 24VDC systems and a 30A current. It conforms to American National Standard SAE J553.
This circuit breaker features a push-to-reset actuator and a single pole configuration. The terminals include a copper plate for the battery connection (0.58”) and a zinc plate for the auxiliary connection (0.66”). The body is constructed from PBT material.
Operating within a temperature range of -10°F to 150°F, the MRCBP-24-V-30A is suitable for various environmental conditions. It is designed for occasional overcurrent protection and should not be used for repeated overcurrent conditions.
Mounting is facilitated by an integrated vertical bracket. Avoid contact with chemical solvents, as prolonged exposure can damage the device's performance.
24VDC
30A
-10°F to 150°F
Push to Reset
1 pole
SAEJ553
Vertical Bracket
