| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Terminal Type | |
| Voltage Rating |

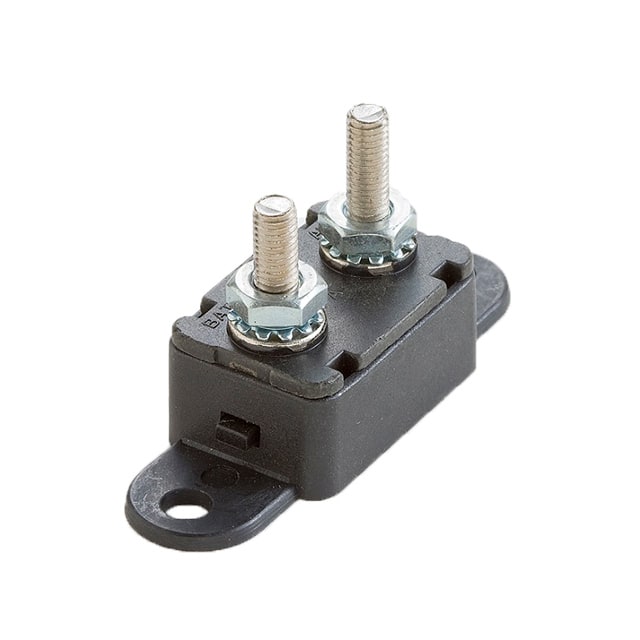

This OptiFuse MRCBP-24-V-25A is a manual reset circuit breaker suitable for applications requiring 24VDC power protection. It has a current rating of 25A and conforms to American National Standard SAE J553.
The circuit breaker features a durable PBT body and is designed with a vertical bracket for mounting. The terminals include a copper-plated battery terminal (0.58”) and a zinc-plated auxiliary terminal (0.66”). The operating temperature range is -10°F to 150°F.
It is intended for occasional overcurrent protection and is not designed for repeated overcurrent conditions or prolonged tripping. Avoid contact with chemical solvents, as prolonged contact can damage performance.
24VDC
25A
Push to Reset
1
SAEJ553
-10°F to 150°F
-20°F to 200°F
