| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Automotive Grade | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Type | |
| Voltage Rating |

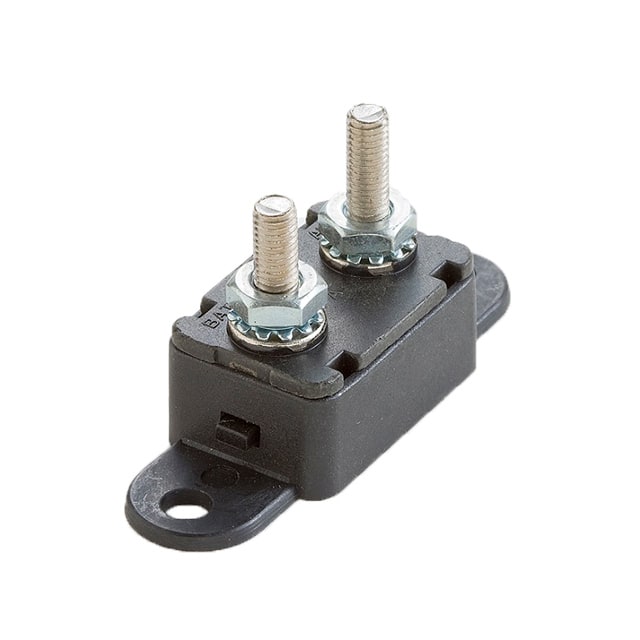

This OptiFuse MRCBP-24-V-20A is a manual reset type circuit breaker suitable for automotive applications, conforming to American National Standard SAE J553.
It operates at a voltage rating of 24VDC and has a current rating of 20A. The circuit breaker features a PBT body and is designed with a vertical bracket for mounting. The terminals include a copper plate for the battery connection and a zinc plate for the auxiliary connection.
Key specifications include an operating temperature range of -10°F to 150°F and a storage temperature range of -20°F to 200°F. The device is intended for occasional overcurrent protection and should not be used for repeated overcurrent conditions.
Warning: Operation beyond specified maximum ratings or improper use may result in damage, electrical arcing, or flame. Avoid contact with chemical solvents as prolonged contact will damage device performance.
24VDC.
20A.
-10°F to 150°F.
Yes, it is SAEJ553 approved.
Push-to-reset actuator.
1 pole.
Battery terminal is copper plate (0.58 inches), auxiliary terminal is zinc plate (0.66 inches).
