| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Automotive Grade | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Voltage Rating |

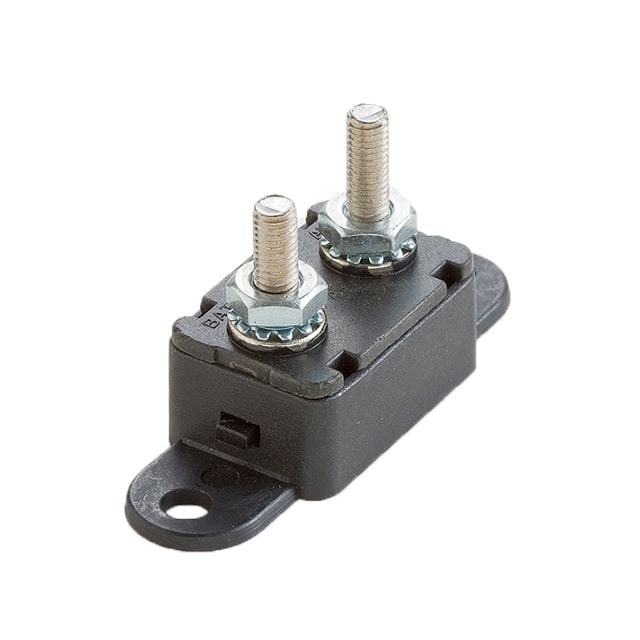

This OptiFuse MRCBP-24-V-15A is a manual reset circuit breaker with a Type III plastic body and a vertical bracket. It is rated for 24VDC and has a 15A current rating, making it suitable for various automotive and industrial applications.
The circuit breaker conforms to American National Standard SAE J553. It features a PBT body and operates within a temperature range of -10°F to 150°F. The terminals include a copper plate battery terminal (0.58”) and a zinc plate auxiliary terminal (0.66”).
Key specifications include a manual reset actuator type and a single pole configuration. The device is intended for occasional overcurrent protection and should not be used for repeated overcurrent conditions. Avoid contact with chemical solvents, as prolonged contact can damage performance.
24VDC.
15A. It also has time-delay characteristics: holds at 100% for >30 minutes, trips at 135% in <30 minutes, and at 200% in <1 minute.
-10°F to 150°F.
Push to reset.
1 pole.
SAE J553.
PBT (polybutylene terephthalate).
