| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Package / Case | |
| Storage Temperature | |
| Type | |
| Voltage Rating |

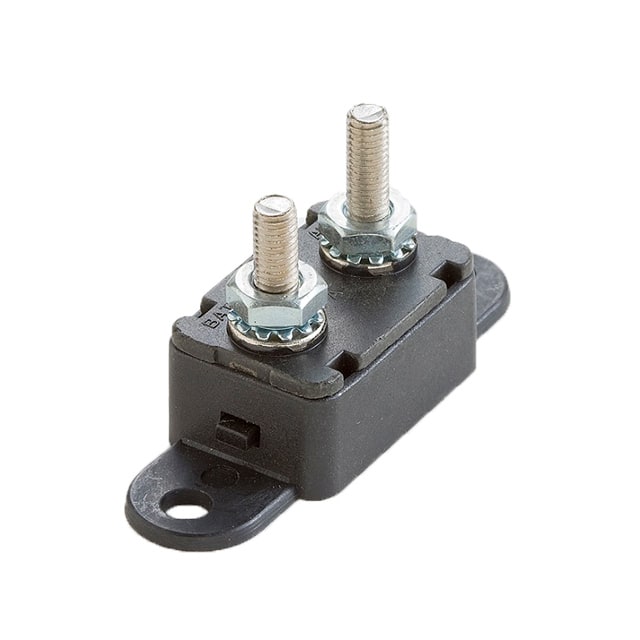

This OptiFuse MRCBP-24-V-10A is a manual reset circuit breaker suitable for automotive and industrial applications requiring 24VDC power protection. It features a robust PBT body and conforms to American National Standard SAE J553.
The circuit breaker is rated for 10A and operates within a temperature range of -10°F to 150°F. It is designed for occasional overcurrent protection and provides reliable tripping characteristics at various load percentages.
With a Type III plastic construction and a vertical bracket mounting type, this component is designed for easy integration into various systems. The terminals include a copper plate battery terminal and a zinc plate auxiliary terminal.
The voltage rating is 24 VDC.
The current rating is 10A.
It is a manual reset circuit breaker.
Yes, it conforms to American National Standard SAE J553.
The operating temperature range is -10°F to 150°F.
It has a copper plate battery terminal (0.58”) and a zinc plate auxiliary terminal (0.66”).
