| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Actuator Type | |
| Approval Agency | |
| Automotive Grade | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Number of Poles | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating |

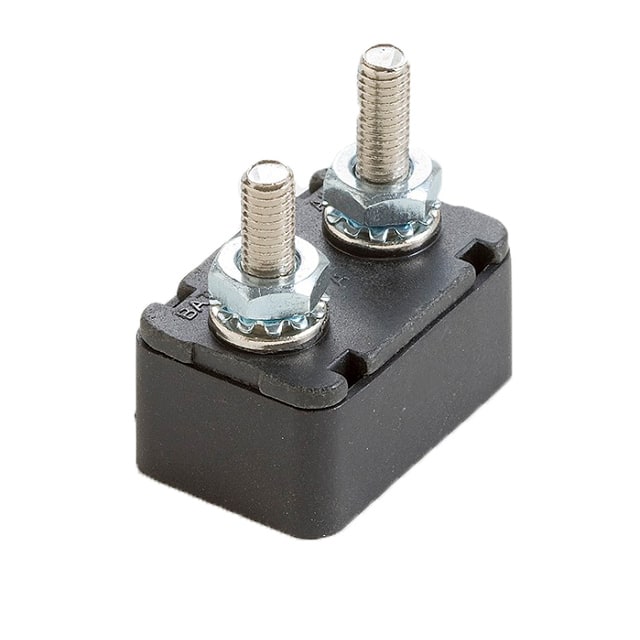

This OptiFuse MRCBP-24-N-40A is a manual reset circuit breaker suitable for automotive and other 24VDC applications. It features a robust PBT body and conforms to American National Standard SAE J553.
The breaker is rated for 40A and operates within a temperature range of -10°F to 150°F. It is designed for occasional overcurrent protection and includes specific open time ratings at 100%, 135%, and 200% of its rated current.
Key specifications include a 24VDC voltage rating and a push-to-reset actuator type. The battery terminal is copper plated with a 0.58” diameter, and the auxiliary terminal is zinc plated with a 0.66” diameter. This model is Type III and does not include a bracket.
The voltage rating is 24 VDC.
The current rating is 40A.
It has a push-to-reset actuator type.
This is a single pole circuit breaker.
The operating temperature range is -10°F to 150°F.
Yes, it conforms to American National Standard SAE J553.
The RoHS status is RoHS3 Compliant.
