| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Automotive Grade | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Voltage Rating |

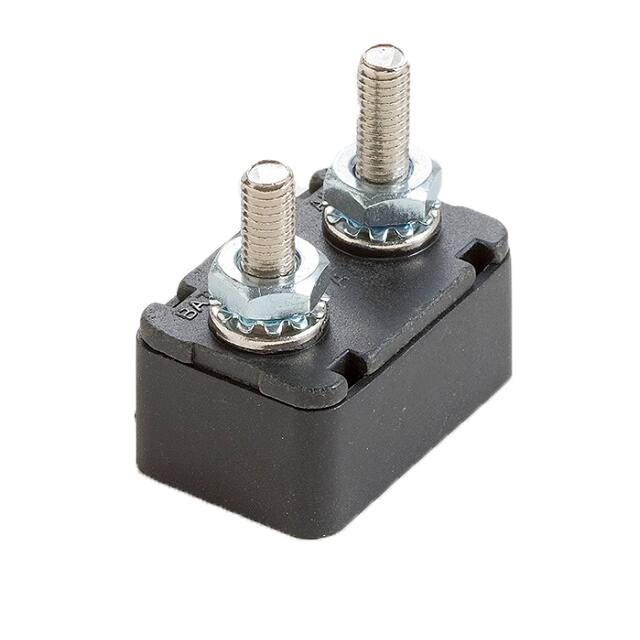

This OptiFuse MRCBP-24-N-35A is a Type III manual reset circuit breaker without a bracket, rated for 24VDC systems and a 35A current. It features a durable PBT body and conforms to American National Standard SAE J553.
The circuit breaker operates within a temperature range of -10°F to 150°F. Its terminals include a copper plate battery terminal (0.58”) and a zinc plate auxiliary terminal (0.66”). The device is intended for occasional overcurrent protection and is not designed for repeated overcurrent conditions or prolonged tripping.
Key specifications include a 100% current rating open time of over 30 minutes, a 135% rating open time of less than 30 minutes, and a 200% rating open time of less than 1 minute. It is important to avoid contact with chemical solvents, as prolonged contact can damage the device's performance.
The MRCBP-24-N-35A is rated for 24 VDC.
It is rated for 35 A.
It uses a push-to-reset actuator.
It has one pole.
The operating temperature range is -10°F to 150°F.
It is approved to SAEJ553.
At 100% of rated current, the breaker holds for more than 30 minutes. At 135%, it opens in less than 30 minutes. At 200%, it opens in less than 1 minute.
