| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Voltage Rating |

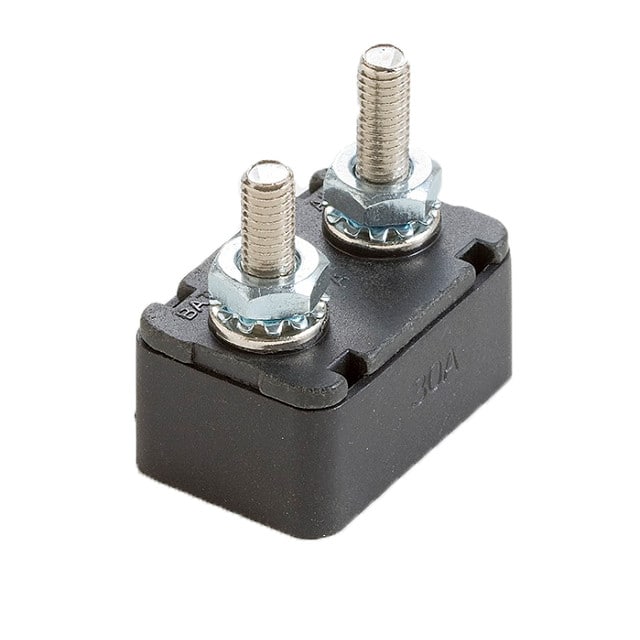

This OptiFuse MRCBP-24-N-30A is a manual reset circuit breaker suitable for applications requiring overcurrent protection in 24VDC systems. It has a current rating of 30A and conforms to the American National Standard SAE J553.
The circuit breaker operates within a temperature range of -10°F to 150°F. Its body is constructed from PBT material, and it features copper-plated battery terminals and zinc-plated auxiliary terminals.
This device is intended for occasional overcurrent protection. Operation beyond specified maximum ratings or improper use may result in damage. Avoid contact with chemical solvents, as prolonged contact can damage performance.
24VDC.
-10°F to 150°F.
30A.
Push to Reset.
1 pole.
SAEJ553.
Holds 100% rated current for >30 min, trips within 30 min at 135% load, and within 1 min at 200% load.
