| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Automotive Grade | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

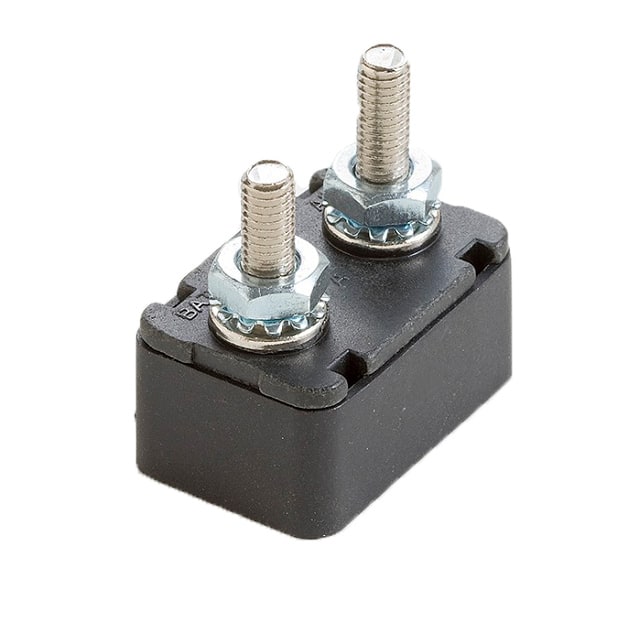

This OptiFuse MRCBP-24-N-25A is a manual reset circuit breaker with a 24VDC voltage rating and a 25A current rating. It is designed for automotive applications and conforms to American National Standard SAE J553.
The circuit breaker features a PBT body and operates within a temperature range of -10°F to 150°F. It includes battery terminals with copper plating (0.58”) and auxiliary terminals with zinc plating (0.66”). The device is intended for occasional overcurrent protection and is not designed for repeated overcurrent conditions.
Key specifications include a 100% current rating open time of over 30 minutes, a 135% rating open time of less than 30 minutes, and a 200% rating open time of less than 1 minute. The actuator type is push to reset, and it is a single-pole device with no illumination.
Warning: Operation beyond specified maximum ratings or improper use may result in damage, electrical arcing, or flame. Avoid contact with chemical solvents, as prolonged contact can damage device performance.
The voltage rating is 24VDC.
The current rating is 25A.
The operating temperature range is -10°F to 150°F.
Yes, it conforms to American National Standard SAE J553.
It has a manual reset mechanism, operated by pushing to reset.
The body material is PBT.
