| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Type | |
| Voltage Rating |

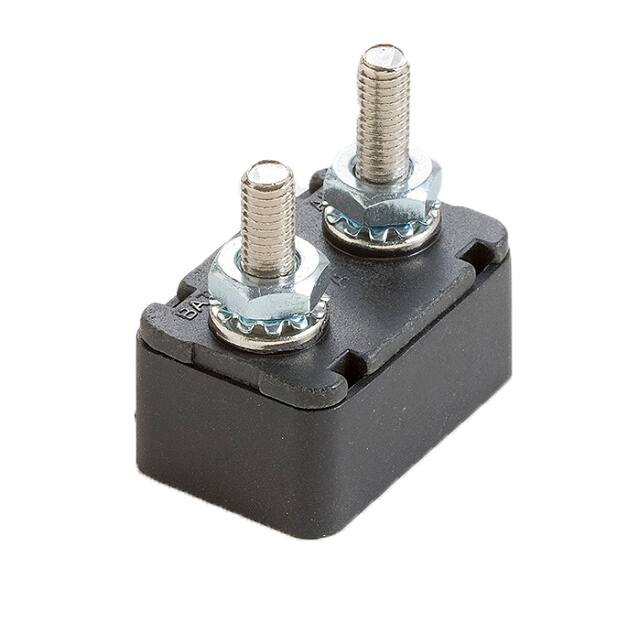

This OptiFuse MRCBP-24-N-10A is a manual reset circuit breaker designed for reliable overcurrent protection. It operates at a voltage rating of 24VDC and has a current rating of 10A. The breaker conforms to American National Standard SAE J553, making it suitable for automotive applications.
The body of the circuit breaker is constructed from PBT material, ensuring durability. It operates within a temperature range of -10°F to 150°F. The terminals include a Battery terminal with Copper Plate (0.58”) and an Auxiliary terminal with Zinc Plate (0.66”).
This device is intended for occasional overcurrent protection and is not designed for repeated overcurrent conditions or prolonged tripping. Avoid contact with chemical solvents, as prolonged contact can damage performance. The breaker is designed without a bracket and is classified as Type III.
24 VDC.
10A for this specific part number; other amperages are available in the series.
-10°F to 150°F.
Automotive Type III manual reset circuit breaker.
SAEJ553 approved.
Push-to-reset actuator for manual reset after tripping.
PBT (Polybutylene Terephthalate).
