| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Automotive Grade | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Voltage | |
| Voltage Rating |

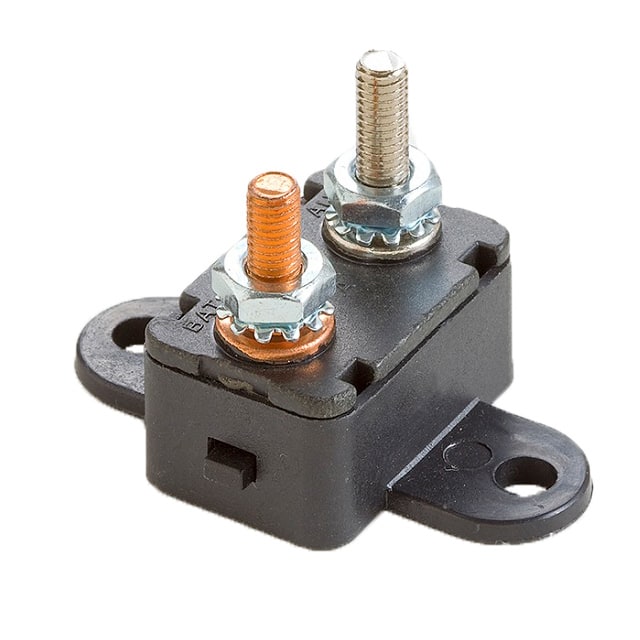

The OptiFuse MRCBP-24-H-40A is a manual reset circuit breaker with a 40A current rating and a 24VDC voltage rating. It conforms to the American National Standard SAE J553 and is designed with a horizontal bracket for mounting.
This circuit breaker operates within a temperature range of -10°F to 150°F. It is constructed with a PBT body and features copper plate battery terminals and zinc plate auxiliary terminals. The device is intended for occasional overcurrent protection and should not be used for repeated overcurrent conditions.
Key specifications include a 100% rating open time of over 30 minutes, a 135% rating open time of less than 30 minutes, and a 200% rating open time of less than 1 minute. The device is housed in a SOT-23 package.
The operating voltage is 24 VDC.
The continuous current rating is 40 A.
-10°F to 150°F.
It uses a push-to-reset actuator.
It is SAEJ553 approved.
Horizontal bracket mounting.
Battery terminals are copper plate; auxiliary terminals are zinc plate.
