| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Terminal Type | |
| Voltage | |
| Voltage Rating |

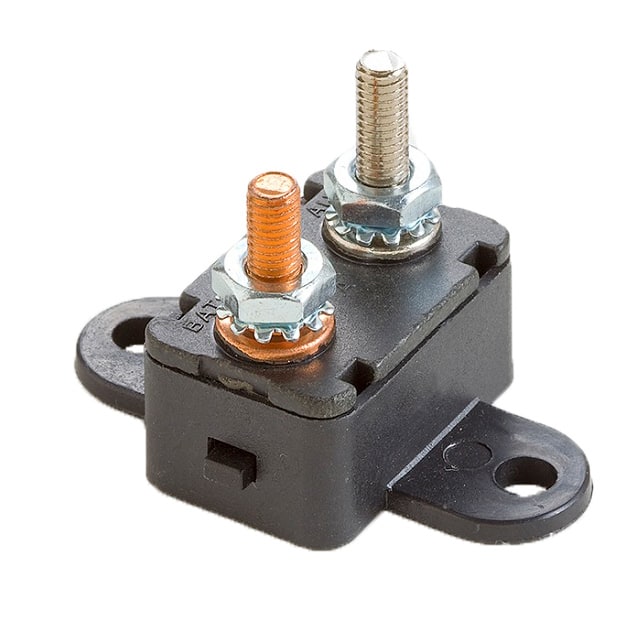

The OptiFuse MRCBP-24-H-35A is a manual reset circuit breaker designed for overcurrent protection. It operates at a voltage of 24VDC and has a current rating of 35A.
This circuit breaker conforms to American National Standard SAE J553 and features a PBT body. It is equipped with a horizontal bracket for mounting and has a push-to-reset actuator. The terminals include a copper plate for battery connection and a zinc plate for auxiliary connection.
Key specifications include an operating temperature range of -10°F to 150°F. The device is intended for occasional overcurrent protection and is not designed for repeated overcurrent conditions or prolonged tripping. Avoid contact with chemical solvents as prolonged contact can damage performance.
24 VDC.
35A.
-10°F to 150°F.
Push to Reset.
Horizontal bracket.
Battery terminal is copper plate (0.58 inches), auxiliary terminal is zinc plate (0.66 inches).
