| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Type | |
| Voltage Rating |

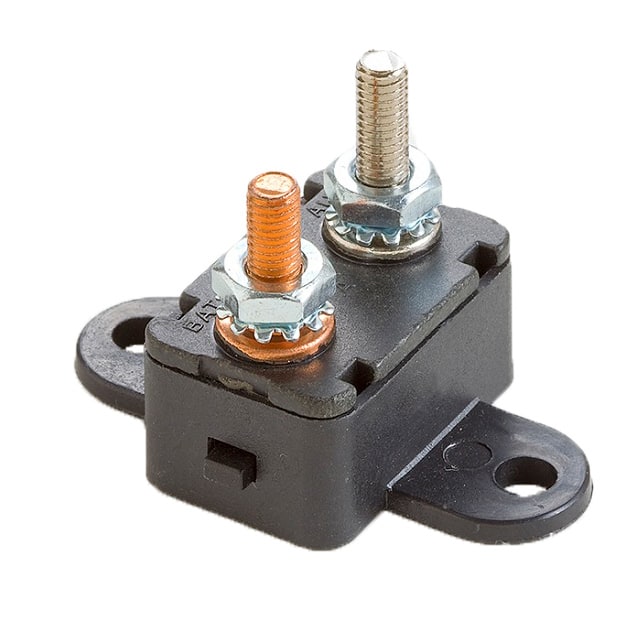

This OptiFuse MRCBP-24-H-30A is a manual reset circuit breaker designed for overcurrent protection in automotive applications. It has a current rating of 30A and a voltage rating of 24VDC.
The circuit breaker conforms to American National Standard SAE J553 and features a PBT plastic body. The terminals include a copper-plated battery terminal (0.58") and a zinc-plated auxiliary terminal (0.66").
Operating temperature ranges from -10°F to 150°F, with a storage temperature range of -20°F to 200°F. The device is intended for occasional overcurrent protection and should not be used for repeated overcurrent conditions.
Mounting is facilitated by a horizontal bracket, and the unit is classified as Type III plastic. Avoid contact with chemical solvents, as prolonged exposure can damage performance.
24VDC.
-10°F to 150°F.
SAEJ553.
Manual reset with push-to-reset actuator.
30A.
1 pole.
PBT.
