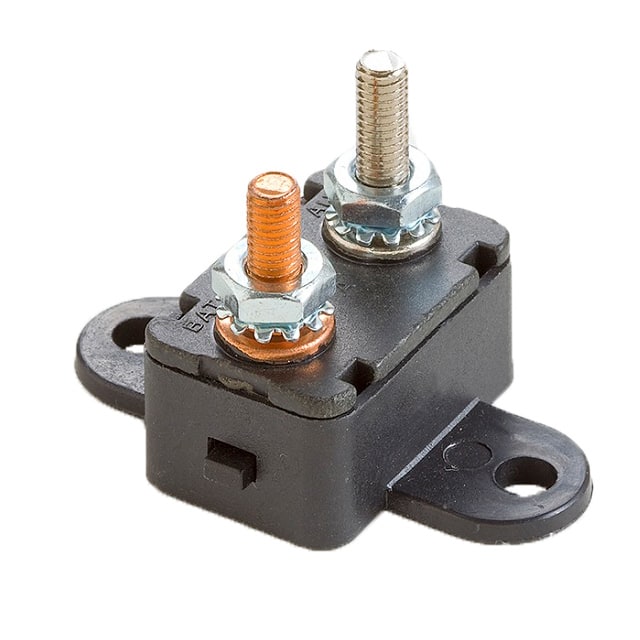

This OptiFuse MRCBP-24-H-25A is a manual reset circuit breaker suitable for 24VDC applications. It features a 25A current rating and conforms to American National Standard SAE J553.
The circuit breaker has a PBT body and is designed with a horizontal bracket for mounting. It includes a push-to-reset actuator and operates within a temperature range of -10°F to 150°F.
Key specifications include a 24VDC voltage rating and a 25A current rating. The device is intended for occasional overcurrent protection and should not be used for repeated overcurrent conditions.
Terminals include a copper-plated battery terminal (0.58”) and a zinc-plated auxiliary terminal (0.66”).
24 VDC.
25A.
Manual reset with push-to-reset actuator.
-10°F to 150°F.
Horizontal bracket mount.
Type III plastic case.
SAEJ553 approved.
