| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Terminal Type | |
| Type | |
| Voltage Rating |

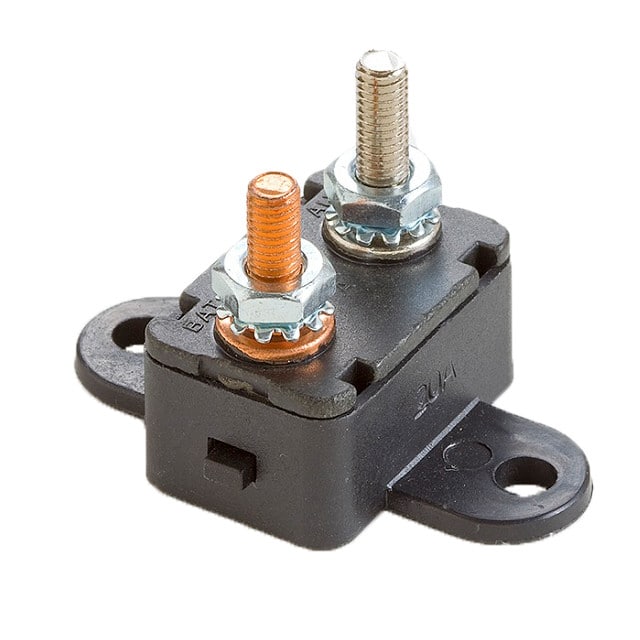

This OptiFuse MRCBP-24-H-20A is a manual reset circuit breaker suitable for applications requiring overcurrent protection in 24VDC systems. It has a current rating of 20A and conforms to American National Standard SAE J553.
The circuit breaker is constructed with a PBT body and features a horizontal bracket for mounting. Its operating temperature range is -10°F to 150°F, with a storage temperature range of -20°F to 200°F. The terminals include a copper-plated battery terminal and a zinc-plated auxiliary terminal.
Key specifications include a 24VDC voltage rating and a 20A amperage. The device is designed for occasional overcurrent protection and should not be used for repeated overcurrent conditions. Avoid contact with chemical solvents, as prolonged contact can damage performance.
24 VDC.
-10°F to 150°F.
Manual reset, Type III per SAEJ553.
Push to Reset.
Horizontal bracket.
PBT.
SAEJ553.
