| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Voltage Rating |

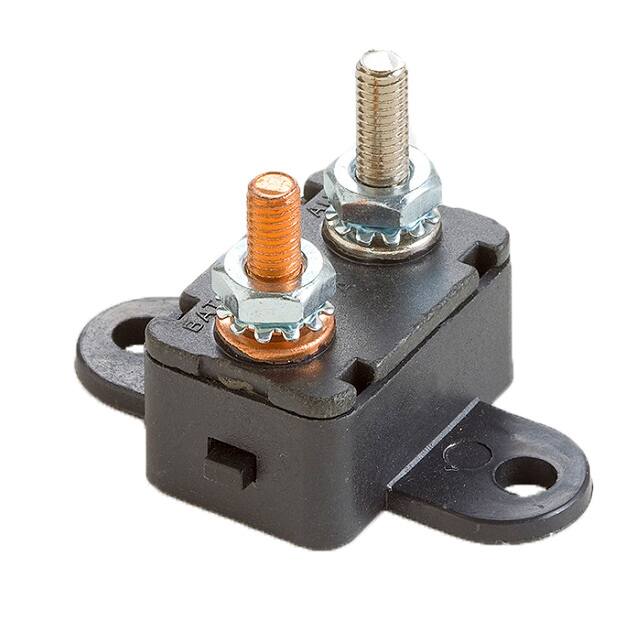

The OptiFuse MRCBP-24-H-15A is a manual reset circuit breaker designed for automotive applications, conforming to American National Standard SAE J553. It has a current rating of 15A and a voltage rating of 24VDC.
This circuit breaker is constructed with a PBT body and features a horizontal bracket for mounting. The operating temperature range is -10°F to 150°F, and the storage temperature range is -20°F to 200°F. It is designed for occasional overcurrent protection and should not be used for repeated overcurrent conditions.
Key specifications include a 15A current rating with specific open time limits at different current percentages: greater than 30 minutes at 100%, less than 30 minutes at 135%, and less than 1 minute at 200%. The terminals include a copper plate battery terminal (0.58") and a zinc plate auxiliary terminal (0.66").
Warnings indicate that operation beyond specified maximum ratings or improper use may result in damage, electrical arcing, or flame. Avoid contact with chemical solvents, as prolonged contact can damage device performance.
24VDC.
15A.
-10°F to 150°F.
Less than 1 minute.
Push to reset.
Horizontal bracket.
1 pole.
