| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Automotive Grade | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Voltage Rating |

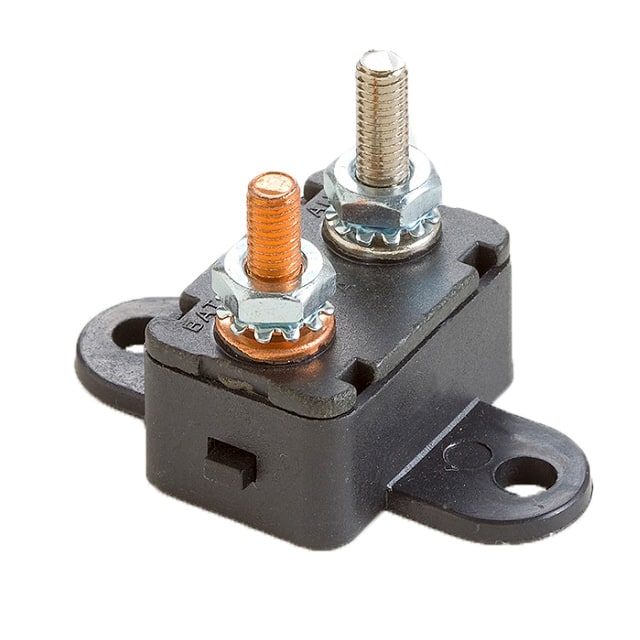

The OptiFuse MRCBP-24-H-10A is a manual reset circuit breaker designed for automotive applications. It operates at a voltage of 24VDC and has a current rating of 10A. The breaker conforms to the American National Standard SAE J553 and features a PBT body.
This circuit breaker is suitable for occasional overcurrent protection and is intended for use within an operating temperature range of -10°F to 150°F. It has a horizontal bracket mounting type and a push-to-reset actuator. The terminals are copper plated for the battery connection and zinc plated for the auxiliary connection.
Key specifications include a 100% current rating open time of over 30 minutes, a 135% current rating open time of less than 30 minutes, and a 200% current rating open time of less than 1 minute. The device is designed for reliability in demanding environments.
The voltage rating is 24VDC.
The MRCBP-24-H-10A is supplied in bulk packaging.
-10°F to 150°F.
10A continuous.
Push-to-reset manual reset actuation.
SAE J553.
1 pole.
