| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Automotive Grade | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Number of Poles | |
| Operating Temperature | |
| Response Time | |
| Tape & Reel | |
| Voltage Rating |

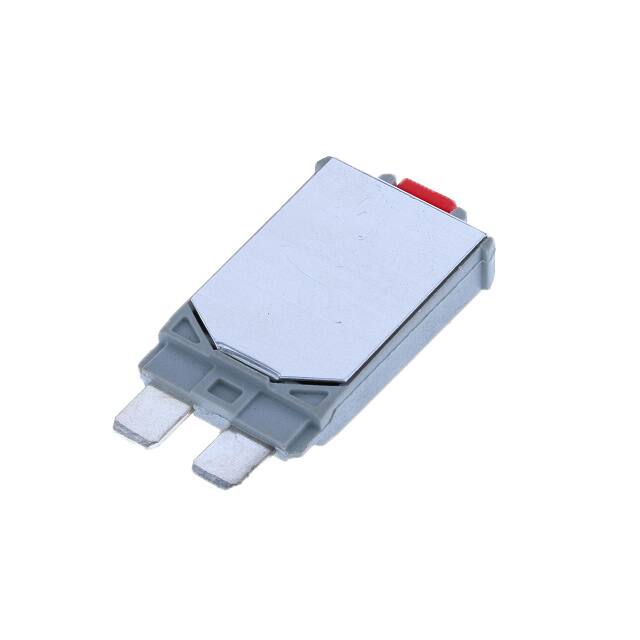

The OptiFuse MRCBM-PL-25A is a manual reset circuit breaker conforming to SAE J553 standards. It is designed for automotive applications and operates at up to 28V DC with a current rating of 25A.
This circuit breaker has a PBT body and an anodized aluminum cover. It is suitable for occasional overcurrent protection and is intended for use within its specified maximum ratings. Operation beyond these limits may result in damage or electrical arcing.
The device operates within a temperature range of -40°C to 85°C. Its interrupt rating is 450A at 14 VDC for the 25A version. The response time at 200% current is less than 1 minute.
The optimal current rating is 25A.
It is rated for up to 28V DC.
The interupt rating is 450A at 14V DC.
The response time is less than 1 minute at 200% rated current.
It has a push to reset actuatr.
The operating temperature range is -40°C to 85°C.
