| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Automotive Grade | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Type | |
| Voltage Rating |

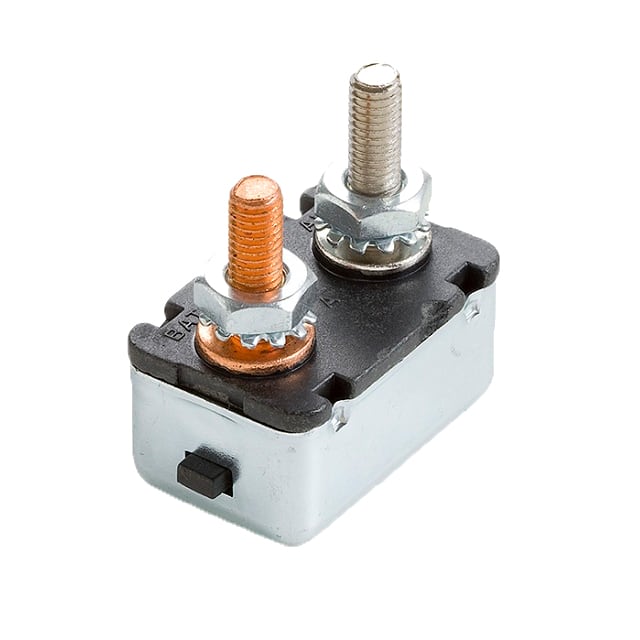

The OptiFuse MRCB-24-N-10A is a Type III manual reset circuit breaker designed for automotive applications. It operates at 24VDC and has a current rating of 10A, with an interrupting rating of 2000A at 24VDC.
This circuit breaker is SAEJ553 approved and features a push-to-reset actuator. The terminals are configured with #10-32 studs, and the mounting type is stud mounted. The operating temperature range is from -40°C to 80°C.
The materials specified include copper for the battery connection and zinc-plated steel for the auxiliary components. The MRCB-24-N-10A is part of the MRCB-24-N series.
The voltage rating is 24 VDC.
The current rating is 10 A.
It is a manual reset Type III circuit breaker with a push-to-reset actuator.
The operating temperature range is -40°C to 80°C.
The RoHS status is RoHS3 Compliant.
