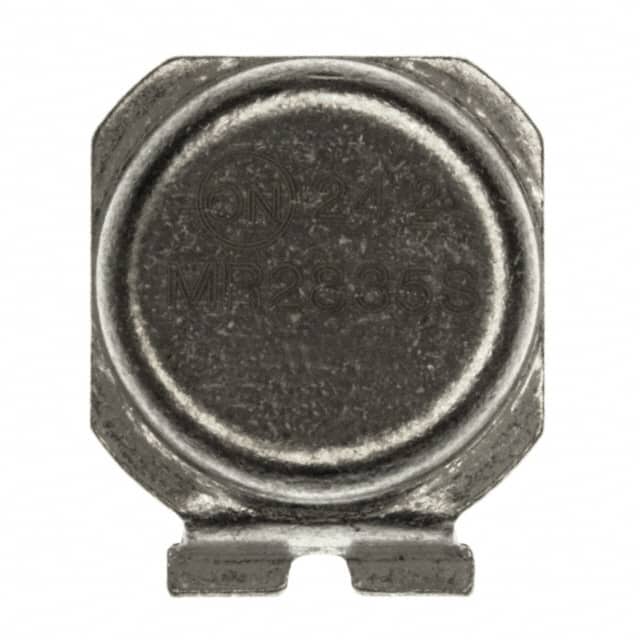

MR2835SKG The MR2835SKG is a 23V TVS diode from On Semiconductor in a surface mount Top Can package. It provides 400A non-repetitive surge current protection for automotive systems.
Mfr Part #:

MR2835SKG

Available from 4 distributors
Mfr Name: On Semiconductor
On Semiconductor
The MR2835SKG is a 23V TVS diode from On Semiconductor in a surface mount Top Can package. It provides 400A non-repetitive surge current protection for automotive systems.
✓ Total Stock: 33,458 pcs
$ Price Range: $2.00

MR2835SKG Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
23,122 pcs
On Request
23122 pcs On Request 1 On Request On Request 10+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
9,988 pcs
On Request
9988 pcs On Request 1 On Request On Request 10+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
240 pcs
On Request
240 pcs On Request 1 On Request On Request On Request On Request On Request
OTL Components ✓
Non-Authorised Inventory information
108 pcs
On Request
108 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MR2835SKG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Mounting Type
Operating Temperature
Power Line Protection
Storage Temperature
Supplier Device Package
Tape & Reel
Type
Unidirectional Channels
Voltage
Weight
View Similar Products (0)

MR2835SKG Description

Short technical summary and product information.

The MR2835SKG is a unidirectional overvoltage transient suppressor (TVS diode) from On Semiconductor, designed for reverse avalanche operation as a power zener diode. It is developed to protect automotive modules such as ignition, injection, and autoblocking systems from overvoltage conditions.



Key specifications include a DC blocking voltage of 23V, a breakdown voltage range of 24V to 32V (at IZ=100mA), and a maximum forward voltage of 1.1V at 100A. The device can handle a non-repetitive peak surge current of 400A (half-wave, 50Hz) and a repetitive reverse surge current of 62A (10ms time constant). Reverse leakage current is 5.0 µA maximum at 20V.



The MR2835SKG comes in a surface mount Top Can package with a weight of 1.78 grams. It is Pb-Free (lead-free) and has an operating junction temperature range of -40°C to 150°C. Thermal resistance (junction-to-case) is 1.0°C/W. Standard packaging is tape and reel with 500 pieces per reel.

MR2835SKG Quick Information

Product Type: TVS Diode
Canonical Name: MR2835SKG TVS Diode, 23V DC Blocking, Top Can
Subcategory: TVS Diode

MR2835SKG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

MR2835SKG Estimated Pricing

Qty Low High
150+ $2.00 $2.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

MR2835SKG Features

  • 23V DC blocking voltage.
  • 24-32V breakdown voltage range.
  • 400A non-repetitive surge current.
  • Surface mount Top Can package.
  • Pb-Free device verified.

MR2835SKG Applications

  • Automotive ignition system transient protection.
  • Injection and autoblocking system surge suppression.
  • Overvoltage protection for automotive modules.
  • General purpose high power TVS applications.

MR2835SKG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the reverse standoff voltage (VRWM) of the MR2835SKG?

The DC blocking voltage is 23V, which serves as the reverse standoff voltage.

What is the breakdown voltage range of the MR2835SKG?

The breakdown voltage is 24V to 32V at IZ=100mA.

What is the peak surge current rating of the MR2835SKG?

The non-repetitive peak surge current is 400A (half-wave, 50Hz) and the repetitive reverse surge current is 62A (10ms time constant).

What package does the MR2835SKG come in?

It is in a surface mount Top Can package.

What is the forward voltage of the MR2835SKG?

Maximum forward voltage is 1.1V at IF=100A.

What is the operating temperature range of the MR2835SKG?

-40°C to 150°C junction temperature.

What is the reverse leakage current of the MR2835SKG?

Maximum reverse current is 5.0 µA at VR=20V.
