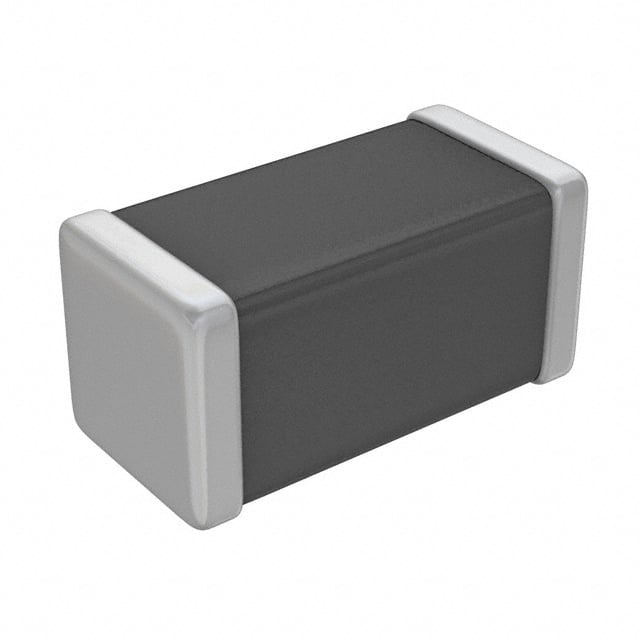

MPZ1005S300CT000 The TDK Corporation MPZ1005S300CT000 is a ferrite bead designed for power line filtering. It offers 30 Ohms impedance at 100 MHz and a 1.7A current rating.
Mfr Part #:

MPZ1005S300CT000

Available from 2 distributors
Mfr Name: TDK Corporation
TDK Corporation
The TDK Corporation MPZ1005S300CT000 is a ferrite bead designed for power line filtering. It offers 30 Ohms impedance at 100 MHz and a 1.7A current rating.
✓ Total Stock: 149,000 pcs
$ Price Range: $0.99

MPZ1005S300CT000 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
140,000 pcs
On Request
140000 pcs On Request 1 On Request On Request 2021+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
9,000 pcs
On Request
9000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MPZ1005S300CT000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current Rating (Max)
DC Resistance (DCR) (Max)
Filter Type
Height
Height (Max)
Impedance @ Frequency
Industrial Grade
Length
Medical Grade
Military Grade
Mounting Type
Number of Lines
Operating Temperature
Width
View Similar Products (0)

MPZ1005S300CT000 Description

Short technical summary and product information.

The TDK Corporation MPZ1005S300CT000 is a ferrite bead belonging to the Ferrite Beads and Chips category. It is designed for power line filtering applications.



Key electrical specifications include an impedance of 30 Ohms at 100 MHz and a maximum current rating of 1.7 Amperes. The DC resistance (DCR) is a maximum of 35 milliohms. This component operates within a temperature range of -55°C to 125°C.



Mechanically, the ferrite bead is housed in a 0402 (1005 Metric) package. Its dimensions are 1.00mm in length and 0.50mm in width, with a maximum height of 0.55mm. The mounting type is Surface Mount.



This part is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected. However, these compliance statuses are unverified.

MPZ1005S300CT000 Quick Information

Product Type: Ferrite Bead
Canonical Name: TDK Corporation MPZ1005S300CT000 Ferrite Bead
Subcategory: Ferrite Bead

MPZ1005S300CT000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MPZ1005S300CT000 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

MPZ1005S300CT000 Features

  • Power line filtering ferrite bead.
  • 30 Ohm impedance at 100 MHz.
  • Maximum current rating of 1.7A.
  • Compact 0402 (1005 Metric) package.
  • Surface mountable design.

MPZ1005S300CT000 Applications

  • Used for noise suppression in power lines.
  • Suitable for high-frequency filtering.
  • Ideal for compact electronic devices.
  • Component for signal integrity applications.

MPZ1005S300CT000 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the impedance of the MPZ1005S300CT000 at 100 MHz?

The impedance is 30 Ohms at 100 MHz.

What is the maximum current rating for this ferrite bead?

The maximum current rating is 1.7A.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

What package size is the MPZ1005S300CT000 in?

It is in the 0402 (1005 Metric) package.

What is the mounting type?

The mounting type is Surface Mount.
