| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
99 pcs
|
99 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height | |
| Height (Max) | |
| Impedance | |
| Impedance @ Frequency | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Tape & Reel | |
| Width |

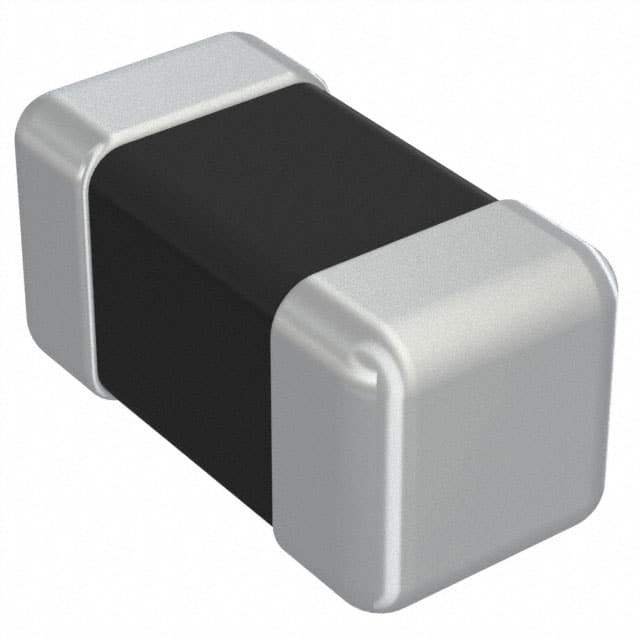

This TDK Corporation MPZ0603S121HT000 is a ferrite bead from the MPZ-H series, specifically designed for power line applications. It features a compact 0201 (0603 Metric) package suitable for surface mounting.
The component provides an impedance of 120 Ohms at 100 MHz, a maximum current rating of 1A, and a maximum DC resistance of 130mΩ. It operates within a temperature range of -55°C to 125°C.
The dimensions of the ferrite bead are 0.60mm in length and 0.30mm in width, with a maximum height of 0.33mm. It is supplied in Cut Tape (CT) & Digi-Reel® packaging.
This ferrite bead is suitable for general electronic equipment and is designed to suppress noise in power lines.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance of the MPZ0603S121HT000 is 120 Ohms at 100 MHz.
The maximum current rating for the MPZ0603S121HT000 is 1A.
The maximum DC resistance (DCR) of the MPZ0603S121HT000 is 130mΩ.
The operating temperature range for the MPZ0603S121HT000 is -55°C to 125°C.
The MPZ0603S121HT000 is in a 0201 (0603 Metric) package.
The MPZ0603S121HT000 is a surface mount component.
