| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | 749 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Mounting Type | |
| Operating Temperature | |
| Output Voltage | |
| Port Location | |
| Port Size | |
| Tape & Reel | |
| Voltage |

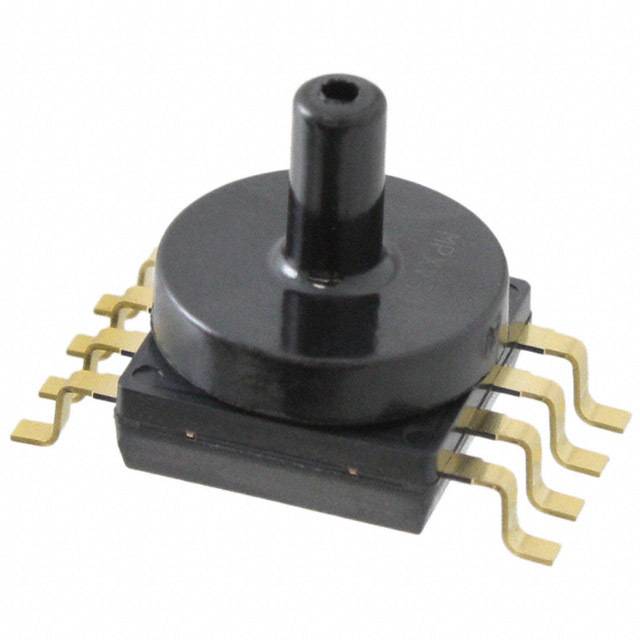

The MPXAZ4115AC6U is a pressure sensor manufactured by NXP Semiconductors / Freescale. This component is designed for applications requiring precise pressure measurement within a specified range. It operates with a supply voltage between 4.85V and 5.35V, providing an output voltage from 0.2V to 4.8V.
The sensor has a sensing range of 15 kPa to 115 kPa (2.18 PSI to 16.68 PSI) and an absolute maximum pressure rating of 58.02 PSI (400 kPa). It is compensated for temperature variations and operates reliably within a temperature range of -40°C to 125°C.
Packaged in an 8-SMD, Gull Wing configuration with a top port, this surface-mount device is suitable for various electronic assemblies. The port has a diameter of 0.13" (3.17mm) and a barbless style. The standard package quantity is 6030 pieces.
This pressure sensor is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 (Unlimited). It is also REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.81 | $0.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range for the MPXAZ4115AC6U is 4.85 V to 5.35 V.
The pressure sensing range is 15 kPa to 115 kPa, which is equivalent to 2.18 PSI to 16.68 PSI.
The output voltage range is 0.2 V to 4.8 V.
The operating temperature range is -40°C to 125°C.
The package type is 8-SMD, Gull Wing, Top Port.
The standard package quantity is 6030 pieces.
