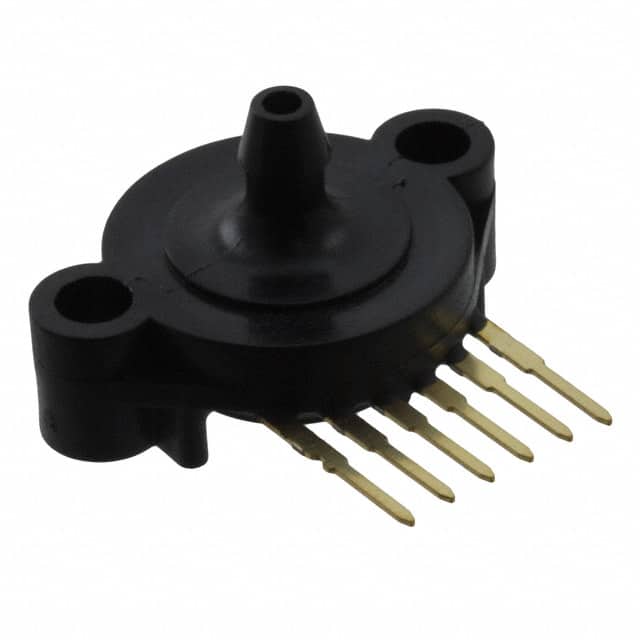

MPX5700ASX The MPX5700ASX is a pressure sensor capable of measuring from 15 to 700 kPa. It operates at a supply voltage of 4.75 to 5.25 Vdc and provides a full-scale output of 4.7 Vdc.
Mfr Part #:

MPX5700ASX

Available from 4 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The MPX5700ASX is a pressure sensor capable of measuring from 15 to 700 kPa. It operates at a supply voltage of 4.75 to 5.25 Vdc and provides a full-scale output of 4.7 Vdc.
✓ Total Stock: 1,731 pcs
$ Price Range: $1.50

MPX5700ASX Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MPX5700ASX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accuracy
Applications
Features
Maximum Pressure
Mounting Type
Operating Pressure
Operating Temperature
Output
Output Type
Port Size
Port Style
Pressure Type
Supply Current
Termination Style
Voltage
View Similar Products (0)

MPX5700ASX Description

Short technical summary and product information.

The MPX5700ASX is a pressure sensor manufactured by NXP Semiconductors. It measures gauge and differential pressure with a range from 15 to 700 kPa and an absolute pressure range from 0 to 700 kPa. The device operates with a supply voltage between 4.75 Vdc and 5.25 Vdc, typically drawing 7 mA of current. It features a zero pressure offset of approximately 0.184 Vdc for gauge and differential conditions, and 0.313 Vdc for absolute conditions. The sensor provides a full-scale output of approximately 4.7 Vdc and a span of 4.5 Vdc, with an accuracy of ±2.5%. It is suitable for applications requiring precise pressure measurement in industrial and automotive systems. The sensor is packaged for easy integration into various electronic systems.

MPX5700ASX Quick Information

Product Type: Pressure Sensor
Canonical Name: MPX5700ASX Pressure Sensor

MPX5700ASX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MPX5700ASX Estimated Pricing

Qty Low High
1+ $1.50 $1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

MPX5700ASX Features

  • Measures pressure from 15 to 700 kPa
  • Operates at 4.75 to 5.25 Vdc supply voltage
  • Provides a full-scale output of 4.7 Vdc
  • Typical supply current of 7 mA
  • Accuracy of ±2.5%

MPX5700ASX Applications

  • Used in industrial pressure measurement systems
  • Suitable for automotive pressure sensing
  • Ideal for environmental monitoring devices
  • Integrated into electronic control modules

MPX5700ASX FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pressure measurement range of the MPX5700ASX?

The MPX5700ASX measures pressure from 15 to 700 kPa.

What is the typical supply voltage for the MPX5700ASX?

The typical supply voltage is 5 Vdc.

What is the supply current of the MPX5700ASX?

The typical supply current is 7 mA.

What is the zero pressure offset for the MPX5700ASX?

The zero pressure offset is approximately 0.184 Vdc for gauge and differential conditions, and 0.313 Vdc for absolute conditions.

What is the accuracy of the MPX5700ASX?

The accuracy is ±2.5%.
