| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,421 pcs
|
3421 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,003 pcs
|
2003 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Applications | |
| Features | |
| Maximum Pressure | |
| Mounting Type | |
| Operating Pressure | |
| Operating Temperature | |
| Output | |
| Output Type | |
| Polysulfone case material | |
| Port Style | |
| Pressure Type | |
| Tape & Reel | |
| Tape and Reel | |
| Termination Style | |
| Voltage |

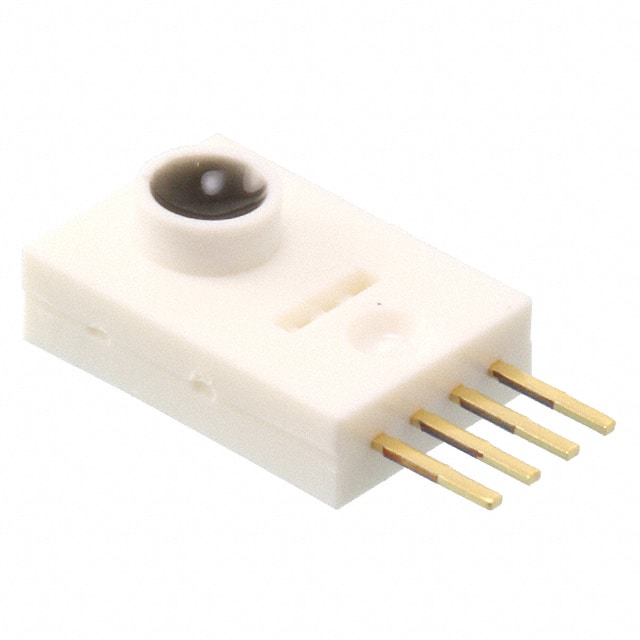

The NXP Semiconductors MPX2300DT1 is a differential compensated pressure sensor designed for various applications. It operates within a pressure range of 0 to 40 kPa and features integrated temperature compensation and calibration for improved accuracy.
The sensor utilizes a Wheatstone bridge output, providing a ratiometric response to the supply voltage. It is designed for board mounting with a through-hole termination style and a 4-SSIP Module package. The operating temperature range is from 15°C to 40°C, with a supply voltage range of 6V to 10V. The accuracy is rated at ±1.5%.
Key features include temperature compensation, ratiometric output to supply voltage, and a polysulfone case material. The device is provided in an easy-to-use tape and reel format, making it suitable for high-volume manufacturing.
Typical applications include medical diagnostics, infusion pumps, blood pressure monitors, pressure catheter applications, and patient monitoring systems. The die and wire bonds are exposed on the front side, requiring customer housing for protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating pressure range is 0 to 40 kPa.
The accuracy is ±1.5%.
It provides a Wheatstone Bridge output.
The operating temperature range is 15°C to 40°C.
The supply voltage range is 6V to 10V.
The package type is 4-SSIP Module.
It is mounted using a through-hole method.
