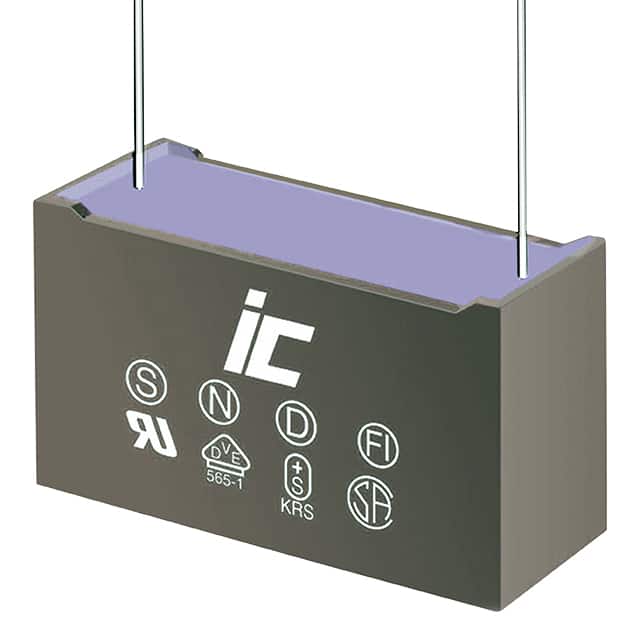

MPX104K305D This is a 0.1 µF metallized polypropylene film capacitor rated at 305 VAC with ±10% tolerance. It is an X2 class EMI suppression capacitor in a radial through-hole package.
Mfr Part #:

MPX104K305D

Available from 1 distributors
Mfr Name: Cornell Dubilier Electronics (CDE)
Cornell Dubilier Electronics (CDE)
This is a 0.1 µF metallized polypropylene film capacitor rated at 305 VAC with ±10% tolerance. It is an X2 class EMI suppression capacitor in a radial through-hole package.
✓ Total Stock: 300 pcs
$ Price Range: $0.15 - $0.57

MPX104K305D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
300 pcs
On Request
300 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MPX104K305D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Automotive Grade
Capacitance
Dielectric Material
Dissipation Factor
Height
Industrial Grade
Lead Spacing
Lead Style
Length
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Ratings
Tape & Reel
Termination
Termination Style
Tolerance
Voltage Rating
Width
View Similar Products (0)

MPX104K305D Description

Short technical summary and product information.

The MPX104K305D is a metallized polypropylene film capacitor from Cornell Dubilier Electronics. It offers a capacitance of 0.1 µF with ±10% tolerance and is rated for 305 VAC operation. This component is classified as an X2 safety capacitor, designed for EMI and RFI suppression in across-the-line applications.



Key specifications include a dissipation factor of ≤0.1% at 1 kHz and 25°C, insulation resistance of ≥15,000 MΩ (terminal-to-terminal) and ≥30,000 MΩ (terminal-to-case) at 100 VDC. The capacitor has a life expectancy of 100,000 hours at rated voltage and 85°C. It meets safety agency approvals including UL/CSA, ENEC, and CQC.



The capacitor features a radial through-hole package with PC pin terminations and 10 mm lead spacing. It operates over a temperature range of -40°C to +110°C. The dielectric material is metallized polypropylene, and the case is flame retardant with epoxy end fill (UL94V-0). Lead terminations are lead-free tinned.

MPX104K305D Quick Information

Product Type: Film Capacitor
Series: MPX
Canonical Name: Film Capacitor, Polypropylene, 0.1 µF, 305 VAC, ±10%, Radial, Through Hole
Subcategory: X2 Safety Capacitor

MPX104K305D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

MPX104K305D Estimated Pricing

Qty Low High
1+ $0.57 $0.57
10+ $0.35 $0.35
50+ $0.26 $0.26
100+ $0.24 $0.24
700+ $0.19 $0.19
1,400+ $0.17 $0.17
2,800+ $0.16 $0.16
5,600+ $0.15 $0.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

MPX104K305D Features

  • 0.1 µF capacitance with ±10% tolerance.
  • Rated for 305 VAC across-the-line use.
  • X2 safety agency approved (UL/CSA, ENEC, CQC).
  • Metallized polypropylene film dielectric.
  • Radial through-hole package with 10 mm lead spacing.

MPX104K305D Applications

  • Used in EMI and RFI suppression circuits.
  • Ideal for across-the-line capacitor applications.
  • Suitable for outdoor EMI filter designs.
  • Meets X2 safety class requirements.

MPX104K305D FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance value of the MPX104K305D?

0.1 µF.

What is the voltage rating?

305 VAC.

What is the dielectric material?

Metallized Polypropylene (PP).

What is the capacitance tolerance?

±10%.

What is the mounting style and package?

Radial through-hole with PC pins and 10 mm lead spacing.

What safety certifications does it have?

UL/CSA, ENEC, and CQC.

What is the operating temperature range?

-40°C to +110°C.
