| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,597 pcs
|
2597 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
700 pcs
|
700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Applications | |
| Features | |
| Maximum Pressure | |
| Mounting Type | |
| Operating Pressure | |
| Operating Temperature | |
| Output | |
| Output Type | |
| Port Size | |
| Port Style | |
| Pressure Type | |
| Termination Style | |
| Voltage |

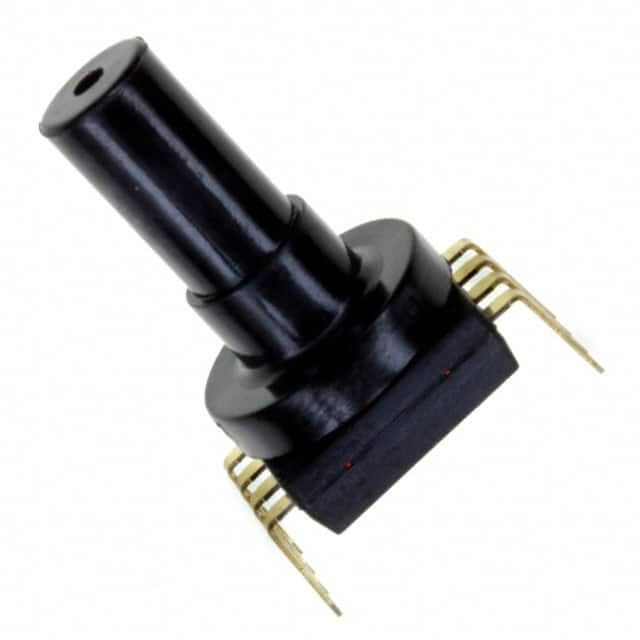

This NXP Semiconductors MPVZ5004GW7U is a pressure sensor belonging to the Pressure Sensors, Transducers category. It is designed for board mounting applications and features temperature compensation for accurate readings. The sensor operates with a voltage range of 4.75V to 5.25V and provides an analog voltage output between 1V and 4.9V.
The operating pressure for this device is 0.57 PSI (3.92 kPa), with a maximum pressure rating of 2.32 PSI (16 kPa). It has a port size of Male - 0.22" Tube and a vented gauge pressure type. The operating temperature range is from 0°C to 85°C.
This sensor is housed in an 8-DIP Module package and utilizes a PC Pin termination style, making it suitable for through-hole mounting. The accuracy of the sensor is rated at ±6.25%.
The MPVZ5004GW7U is RoHS3 Compliant, has an MSL rating of 1, and is REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating pressure range is 0.57 PSI (3.92 kPa).
The operating voltage range is 4.75V to 5.25V.
The output voltage is between 1V and 4.9V.
The operating temperature is 0°C to 85°C.
The package type is 8-DIP Module.
It is a through-hole mount type.
