MPU150-4530G
Bel Power Solutions
The Bel Power Solutions MPU150-4530G is a 150W AC/DC converter designed for ITE (Commercial) applications. It features an open frame construction and chassis mount type.
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

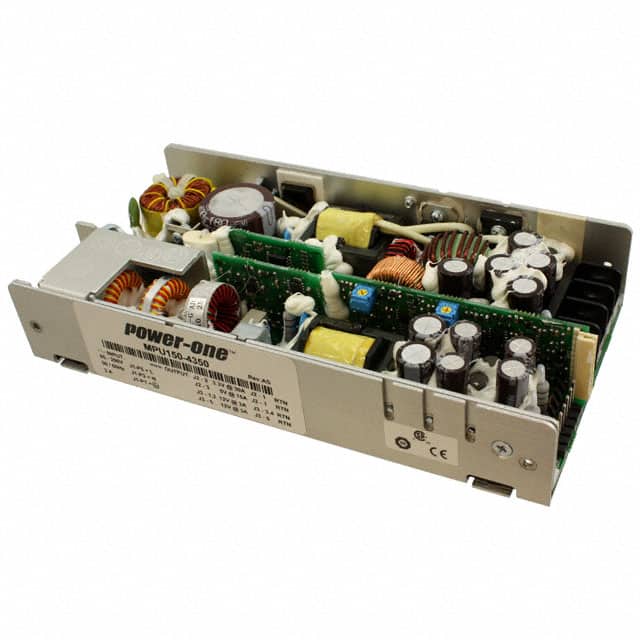

The MPU150-4350 from Bel Power Solutions is an open-frame AC/DC converter with a power rating of 150W. Designed for ITE (Commercial) applications, it offers a universal input and chassis mount type.
Key electrical specifications include an efficiency of 75% and four outputs. It supports features such as adjustable output, load sharing, Power Factor Correction (PFC), and remote sense. The unit has a nominal output voltage of 12V and a nominal output current of 3A.
Mechanically, the converter measures 203.2mm in length, 106.7mm in width, and 38.1mm in height. It operates within a temperature range of 0°C to 70°C with derating.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status. The MPU150/MDU150 series is noted for its low-profile design meeting 1U constraints and high reliability with an MTBF greater than 340,000 hours.
The MPU150-4350 has four outputs: 3.3V, 5V, and two 12V rails.
The MPU150-4350 is rated for 150 watts.
The operating temperature range is 0°C to 70°C with derating.
The efficiency is 75%.
The mounting type is chassis mount.
Yes, it includes power factor correction (PFC).
