MPU-6500 The InvenSense MPU-6500 is a 6-axis IMU combining a 3-axis gyroscope and a 3-axis accelerometer. It offers digital output for 6-axis MotionFusion data and supports I2C and SPI interfaces.
Mfr Part #:

MPU-6500

Available from 3 distributors
Mfr Name: InvenSense Inc
InvenSense Inc
The InvenSense MPU-6500 is a 6-axis IMU combining a 3-axis gyroscope and a 3-axis accelerometer. It offers digital output for 6-axis MotionFusion data and supports I2C and SPI interfaces.
✓ Total Stock: 66,319 pcs
$ Price Range: $1.50

MPU-6500 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
66,265 pcs
On Request
66265 pcs On Request 1 On Request On Request 21+ On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
32 pcs
On Request
32 pcs On Request 1 On Request On Request 1537 On Request On Request
Rayichip ✓
Non-Authorised Inventory information
22 pcs
On Request
22 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MPU-6500 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Operating Temperature
Output Type
Sensor Type
Supplier Device Package
Supplier Package
Supply Voltage
View Similar Products (0)

MPU-6500 Description

Short technical summary and product information.

The InvenSense MPU-6500 is a highly integrated 6-axis Inertial Measurement Unit (IMU) designed for motion tracking applications. It combines a 3-axis gyroscope and a 3-axis accelerometer into a single package, providing digital output for 6-axis MotionFusion data.



The gyroscope offers a programmable full-scale range of ±250, ±500, ±1000, and ±2000dps, while the accelerometer features a programmable full-scale range of ±2g, ±4g, ±8g, and ±16g. The device supports both I2C and SPI serial host interfaces, with I2C operating at up to 400kHz and SPI up to 20MHz.

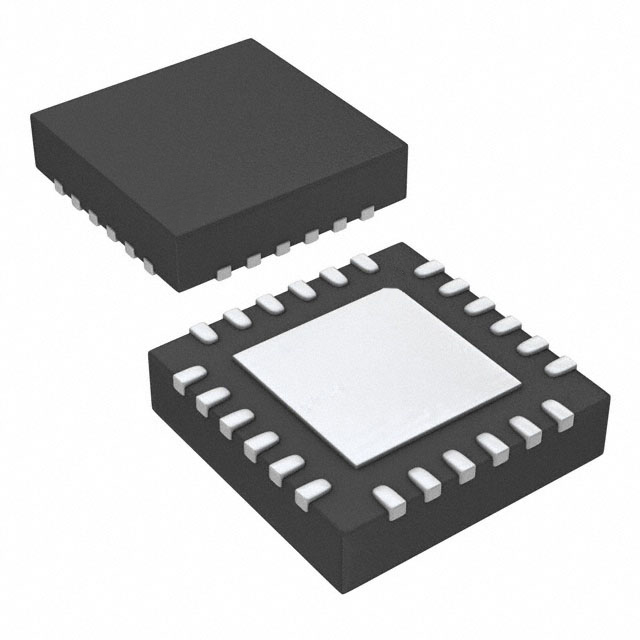

Key features include a Digital Motion Processing™ (DMP™) engine that offloads complex sensor fusion and synchronization tasks. It operates with a supply voltage range of 1.71V to 3.6V and has a low operating current. The MPU-6500 is designed for surface mounting and comes in a compact 24-QFN package.



This IMU is suitable for a wide range of applications including consumer electronics, mobile devices, and robotics, where accurate motion sensing is critical. Its robust design includes 10,000g shock tolerance.

MPU-6500 Quick Information

Product Type: Inertial Measurement Unit (IMU)
Canonical Name: MPU-6500 Six-Axis MotionTracking Device
Subcategory: 6-Axis MotionTracking Device

MPU-6500 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MPU-6500 Estimated Pricing

Qty Low High
1+ $1.50 $1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

MPU-6500 Features

  • Digital output of 6-axis MotionFusion data.
  • Programmable gyro range up to ±2000dps.
  • Programmable accelerometer range up to ±16g.
  • Supports I2C and SPI serial interfaces.
  • Compact 3x3mm QFN package for portable devices.

MPU-6500 Applications

  • Ideal for motion tracking applications.
  • Suitable for mobile devices and computers.
  • Used in gaming and smart home devices.
  • Applicable for industrial robotics and drones.

MPU-6500 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the MPU-6500?

The MPU-6500 operates within a voltage range of 1.71V to 3.6V.

What are the measurement ranges supported by the MPU-6500's accelerometer?

The accelerometer supports measurement ranges of ±2g, ±4g, ±8g, and ±16g.

What is the gyroscope full-scale range of the MPU-6500?

The gyroscope has a full-scale range of ±250, ±500, ±1000, and ±2000dps.

What communication interfaces does the MPU-6500 support?

It supports I2C up to 400kHz and SPI up to 20MHz.

What is the shock tolerance of the MPU-6500?

The device is shock tolerant up to 10,000g.

What is the operating temperature range of the MPU-6500?

-40°C to 85°C.
