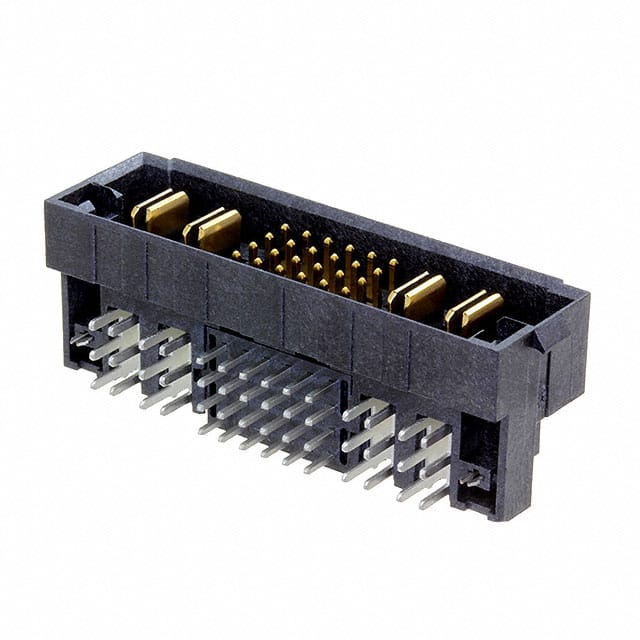

MPTC-02-24-02-01-01-L-RA-LC Right angle, through-hole shrouded header with 28 positions (24 signal + 4 power). Rated for 28A per power blade and 5A per signal pin.
Mfr Part #:

MPTC-02-24-02-01-01-L-RA-LC

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Right angle, through-hole shrouded header with 28 positions (24 signal + 4 power). Rated for 28A per power blade and 5A per signal pin.
✓ Total Stock: 268 pcs
$ Price Range: $5.95

MPTC-02-24-02-01-01-L-RA-LC Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
168 pcs
On Request
168 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MPTC-02-24-02-01-01-L-RA-LC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish - Mating
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

MPTC-02-24-02-01-01-L-RA-LC Description

Short technical summary and product information.

The Samtec MPTC-02-24-02-01-01-L-RA-LC is a high-power and signal combination header from the PowerStrip/30 series. It features a 4-wall shrouded design with 28 positions (24 signal contacts at 2.00mm pitch and 4 power contacts at 5.00mm pitch) in a right-angle, through-hole mounting configuration. The header uses dual blade contact system for power contacts with copper alloy, while signal contacts use phosphor bronze. Gold plating on mating surfaces and tin on tails ensures reliable connections. The insulator is black liquid crystal polymer (LCP) with UL94 V-0 flammability rating. Operating temperature range is -55°C to +125°C with gold plating. Electrical ratings: power contacts up to 28A (1 pin powered) and signal contacts up to 5A (4 pins powered). Voltage rating is 350VAC/495VDC per datasheet, but manufacturer page lists 250VAC/353VDC max. Features include locking ramp, board lock, and locking clip for secure mating. Packaging is tray with 40 pieces per package.

MPTC-02-24-02-01-01-L-RA-LC Quick Information

Product Type: Header, Male Pins
Series: MPTC
Canonical Name: Samtec MPTC-02-24-02-01-01-L-RA-LC, 5.00mm/2.00mm Pitch Power/Signal Header, Through Hole, Right Angle, 28 Positions (24+4 Power), Gold Plating, Locking Clip
Subcategory: Shrouded Header

MPTC-02-24-02-01-01-L-RA-LC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

MPTC-02-24-02-01-01-L-RA-LC Estimated Pricing

Qty Low High
1+ $5.95 $5.95

Estimated market price range - modelled values for guidance only, not live distributor offers.

MPTC-02-24-02-01-01-L-RA-LC Features

  • High-power dual blade contacts rated for 28A.
  • Combined 5.00mm power and 2.00mm signal pitch.
  • Right-angle through-hole mounting with shrouded design.
  • Gold plating on mating contacts for reliability.
  • Locking clip and board lock for secure connection.

MPTC-02-24-02-01-01-L-RA-LC Applications

  • Power distribution in board-to-board configurations.
  • Mixed signal and power in industrial equipment.
  • High-current connections in automotive systems.
  • Compact power supply interconnects.

MPTC-02-24-02-01-01-L-RA-LC FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the MPTC-02-24-02-01-01-L-RA-LC have?

28 positions total: 24 signal contacts and 4 power contacts.

What is the pitch of the power and signal contacts?

Power contacts are on 5.00mm pitch; signal contacts are on 2.00mm pitch.

What is the current rating for power and signal contacts?

Power contacts: 28A maximum (1 pin powered); signal contacts: 5A maximum (4 pins powered).

What is the voltage rating of this connector?

The datasheet specifies 350VAC/495VDC, while the manufacturer page lists 250VAC/353VDC max. Verify with manufacturer for final design.

What is the mounting type of this header?

Through hole, right angle with solder termination.

What is the operating temperature range?

-55°C to +125°C with gold plating.

What is the contact finish on the mating surface?

Gold on mating surface, tin on tail.
