| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

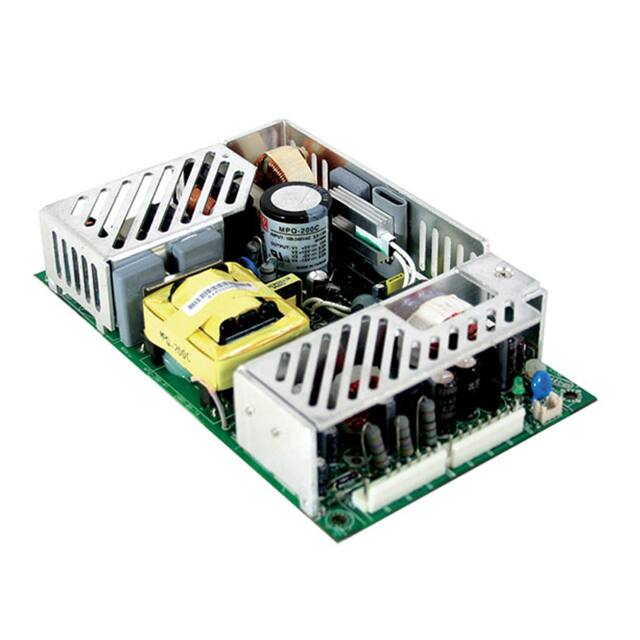

The Mean Well MPT-200A is a versatile open frame AC/DC power supply delivering up to 200W of power. It offers three distinct output voltages: +5V at 20A, +12V at 7.5A, and -5V at 2A. This configuration makes it suitable for a wide range of applications requiring multiple voltage rails.
Designed with a universal input range of 90 to 264 VAC, the MPT-200A ensures compatibility across different power grids. Its open frame construction and chassis mount type facilitate easy integration into various systems. The power supply operates efficiently with an 80% typical efficiency and features universal input capabilities.
Key specifications include an operating temperature range of -20°C to 70°C with derating, and dimensions of 177.8mm x 107.2mm x 35.6mm. It holds approval from agencies such as CB, CE, cURus, and TUV, indicating compliance with various safety and performance standards. The MPT-200A is suitable for ITE (Commercial) and Medical applications.
The Mean Well MPT-200A has three outputs: +5V at 20A, +12V at 7.5A, and -5V at 2A.
The MPT-200A can deliver up to 200W of power with forced air cooling.
The MPT-200A accepts a universal input voltage range of 90 to 264 VAC.
The operating temperature range is -20°C to 70°C, with derating applied.
The dimensions are 177.8mm in length, 107.2mm in width, and 35.6mm in height.
The MPT-200A supports chassis mounting.
It is suitable for ITE (Commercial) and Medical applications.
