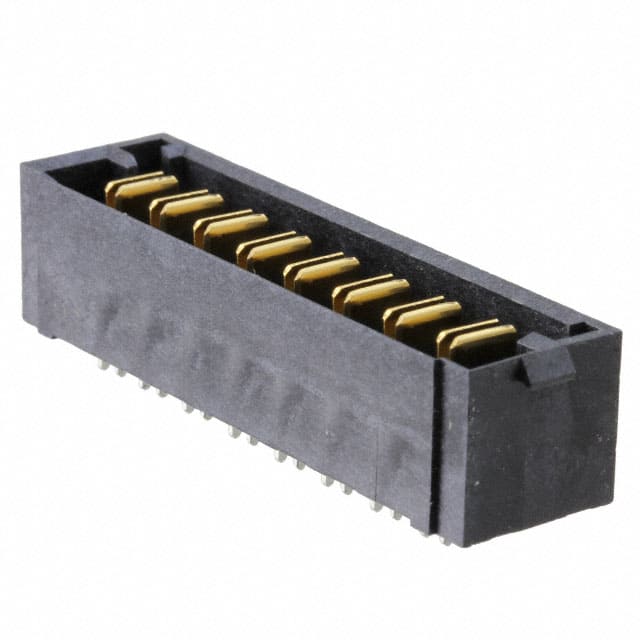

MPT-08-6.30-01-L-V The Samtec Inc. MPT-08-6.30-01-L-V is an 8-position blade power header connector designed for PCB applications. It features a 5.00mm pitch and through-hole mounting.
Mfr Part #:

MPT-08-6.30-01-L-V

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec Inc. MPT-08-6.30-01-L-V is an 8-position blade power header connector designed for PCB applications. It features a 5.00mm pitch and through-hole mounting.
✓ Total Stock: 2,001 pcs
$ Price Range: $1.00

MPT-08-6.30-01-L-V Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
2,001 pcs
On Request
2001 pcs On Request 1 On Request On Request 17+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MPT-08-6.30-01-L-V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Current Rating
Features
Halogen Free
Lead Spacing
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

MPT-08-6.30-01-L-V Description

Short technical summary and product information.

The Samtec Inc. MPT-08-6.30-01-L-V is a high-power blade connector assembly designed for robust electrical connections. This vertical header features 8 power positions with a 5.00mm pitch, suitable for PCB mounting via solder termination.



Key electrical specifications include a current rating of 28A maximum and a voltage rating of 575 VAC or 813 VDC. The connector is designed with a "Through Hole" mounting type and a "Header, Male Blades" connector type, offering a secure and reliable connection.



Additional features include board guide and latch lock mechanisms for enhanced mating stability. The connector comes in a black color and is designed for demanding power applications where high current and voltage handling are critical.

MPT-08-6.30-01-L-V Quick Information

Product Type: Blade Type Power Connector Assembly
Series: MPT
Canonical Name: Samtec Inc. MPT-08-6.30-01-L-V 8 Position Blade Power Header Connector, Vertical, Solder Termination
Subcategory: Blade Type Power Connector Assembly

MPT-08-6.30-01-L-V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MPT-08-6.30-01-L-V Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

MPT-08-6.30-01-L-V Features

  • 8 position blade power header connector.
  • 5.00mm pitch for PCB applications.
  • Rated for 28A maximum current.
  • Supports 575VAC/813VDC voltage.
  • Through hole mounting with solder termination.

MPT-08-6.30-01-L-V Applications

  • High-power system connections.
  • Rugged industrial applications.
  • Power distribution modules.
  • Equipment power interfaces.

MPT-08-6.30-01-L-V FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the MPT-08-6.30-01-L-V connector have?

The MPT-08-6.30-01-L-V connector has 8 positions.

What is the pitch of the MPT-08-6.30-01-L-V connector?

The pitch of the MPT-08-6.30-01-L-V connector is 5.00mm (0.197").

What is the current rating for this blade power connector?

The current rating for the MPT-08-6.30-01-L-V connector is 28A maximum.

What is the voltage rating of the MPT-08-6.30-01-L-V?

The voltage rating is 575VAC or 813VDC.

How is the MPT-08-6.30-01-L-V connector mounted?

This connector is designed for through-hole mounting.
