| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
404 pcs
|
404 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Plating | |
| Current Rating | |
| Features | |
| Halogen Free | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Packaging Type | |
| Pitch | |
| SVHC Present | |
| Standard Package Quantity | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

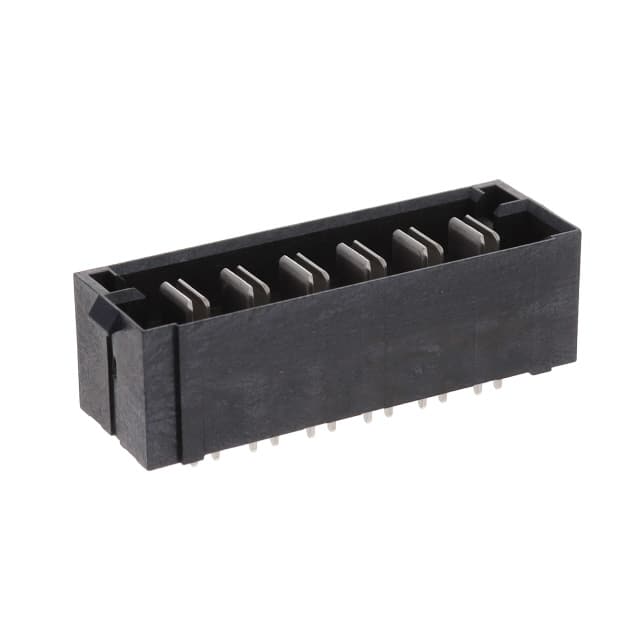

The Samtec MPT-06-6.30-01-T-V is a high-power shrouded box header from the PowerStrip/30 series. It features a 5.00mm pitch and 6 power positions in a single row. The connector uses a dual blade contact design for reliable high-current performance.
This through-hole header is rated for 28A maximum current and 575VAC/813VDC maximum voltage. It has a vertical orientation and includes a board guide feature for secure alignment during assembly. The housing is black and contacts are tin-plated.
The part is packaged in trays with a standard quantity of 54 pieces. It is designed for board-to-board or wire-to-board applications requiring robust power delivery in a compact form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.30 | $4.30 |
| 25+ | $3.71 | $3.71 |
| 54+ | $3.70 | $3.70 |
| 540+ | $3.32 | $3.32 |
| 1,026+ | $3.20 | $3.20 |
| 2,538+ | $2.86 | $2.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 5.00mm (0.197 inches).
It has 6 positions in a single row.
The current rating is 28 A maximum.
The voltage rating is 575 VAC / 813 VDC maximum.
It is a through-hole mounting connector.
