| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | 1712 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clearance | |
| Color | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Creepage | |
| Current Rating (1 pin powered) | |
| Features | |
| Halogen Free | |
| Insulator Material | |
| Lead-Free Solderable | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Packaging Type | |
| Pitch | |
| Standard Package Qty | |
| Tape & Reel | |
| Termination | |
| Voltage Rating (Maximum) |

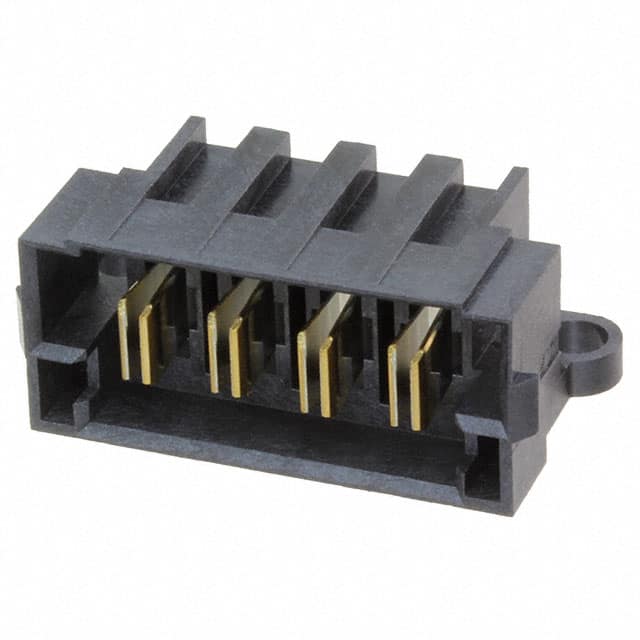

The Samtec MPT-04-01-01-L-RA-SD is a 4-position, 5.00mm pitch right angle through-hole header from the PowerStrip/30 series. It features male blade contacts rated for 28A maximum current (one pin powered) and 350 VAC / 495 VDC maximum voltage. The insulator is black LCP with contact plating options of tin or gold over 50 µ" nickel. Operating temperature range is -55°C to +105°C for tin plating and -55°C to +125°C for gold plating.
This connector includes a latch lock for secure mating and a board guide for alignment. Creepage is 2.95mm and clearance is 2.71mm. It is lead-free solderable and packaged in trays of 56 pieces. The right angle orientation is suitable for space-constrained board-to-board or wire-to-board power applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.50 | $5.50 |
| 504+ | $4.10 | $4.10 |
| 1,008+ | $3.93 | $3.93 |
| 2,520+ | $3.45 | $3.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
5.00mm (0.197 inches).
28A maximum when one pin is powered.
350 VAC or 495 VDC maximum.
Through hole, right angle.
-55°C to +105°C for tin plating, or -55°C to +125°C for gold plating.
Tray packaging with 56 pieces per package.
