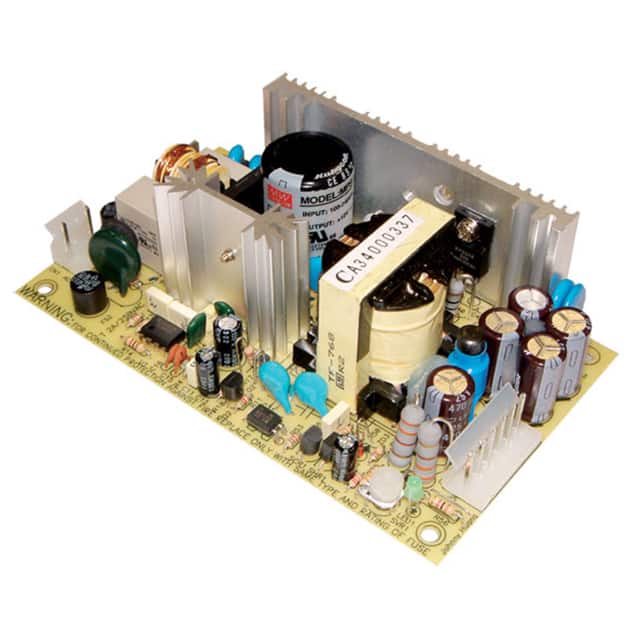

This Mean Well USA MPS-65-7.5 is an AC/DC converter designed for various applications, particularly in the medical field. It offers a power output of 60W and a current rating of 8A, with a single output.
The converter features an open frame construction and is designed for chassis mounting. It operates with an efficiency of 76% and includes features such as adjustable output and universal input. The device is built to withstand a voltage of 4 kV and operates within a temperature range of -10°C to 60°C, with derating.
Key specifications include dimensions of 127.0mm x 76.0mm x 42.0mm. The MPS-65-7.5 is compliant with RoHS3 standards and has an MSL rating of 1.
The output voltage is 7.5V DC.
The efficiency is 76%.
The operating temperature range is -10°C to 60°C with derating.
It uses chassis mount.
Dimensions are 127.0mm x 76.0mm x 42.0mm (5.00" x 2.99" x 1.65").
It has CB, CE, cURus, and TUV approvals.
It has a single output.
