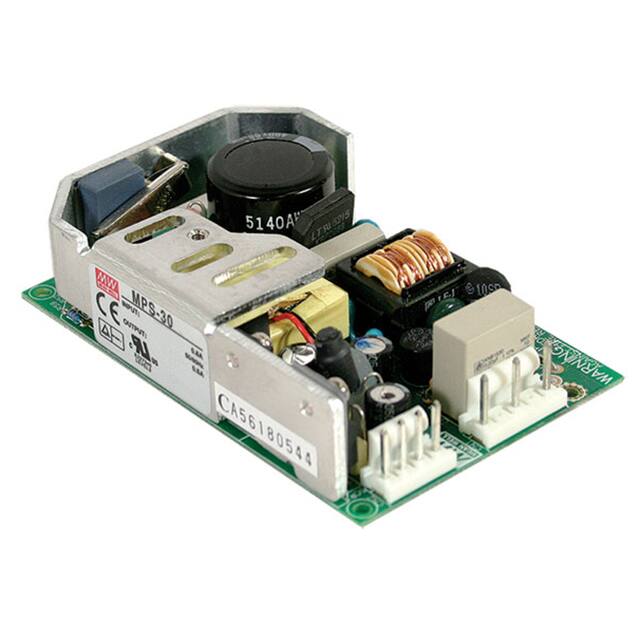

The Mean Well MPS-30-15 is a 30W single-output AC to DC converter designed for medical applications. It offers a reliable 15V DC output at a rated current of 2A, with a total power capacity of 30W. The unit features a universal AC input range of 88V to 264V, making it suitable for global use.
Key specifications include a high efficiency of 76% and an operating temperature range of -10°C to 60°C with derating. The power supply has an isolation voltage of 4kV and a low leakage current of less than 200pA, meeting medical safety standards with 2 x MOPP between primary to secondary. It operates at a fixed switching frequency of 100kHz.
Designed with an open frame construction, the MPS-30-15 is intended for chassis mounting. Its dimensions are 101.6mm in length, 65.8mm in width, and 23.5mm in height. Protections include short circuit, overload, over voltage, and over temperature.
This power supply is suitable for various medical equipment, control panels, embedded systems, and automation devices that require a stable 15V DC power source within its specified limits.
The MPS-30-15 provides a 15V DC output at a rated current of 2A, with a maximum power rating of 30W.
The power supply accepts a universal AC input voltage range from 88V to 264V.
The dimensions are 101.6mm in length, 65.8mm in width, and 23.5mm in height.
The MPS-30-15 can operate within a temperature range of -10°C to 60°C, with derating applied.
Yes, it is designed as a medical type power supply and is medical safety approved with 2 x MOPP between primary to secondary.
This power supply features an open frame design and is intended for chassis mounting.
